Product

ST9-W

$24

Rugged tablet suitable for logistics, industrial, and other scenarios: equipped with Windows 10 and a quad-core processor, features a high-brightness screen, supports multi-mode communication, and comes with practical functions; offers IP65 protection and wide temperature adaptability, with expandable features, making it a durable tool for industrial environments.

  • Buy Now
  • Add to shopping cart
In Stock:

Product Overview

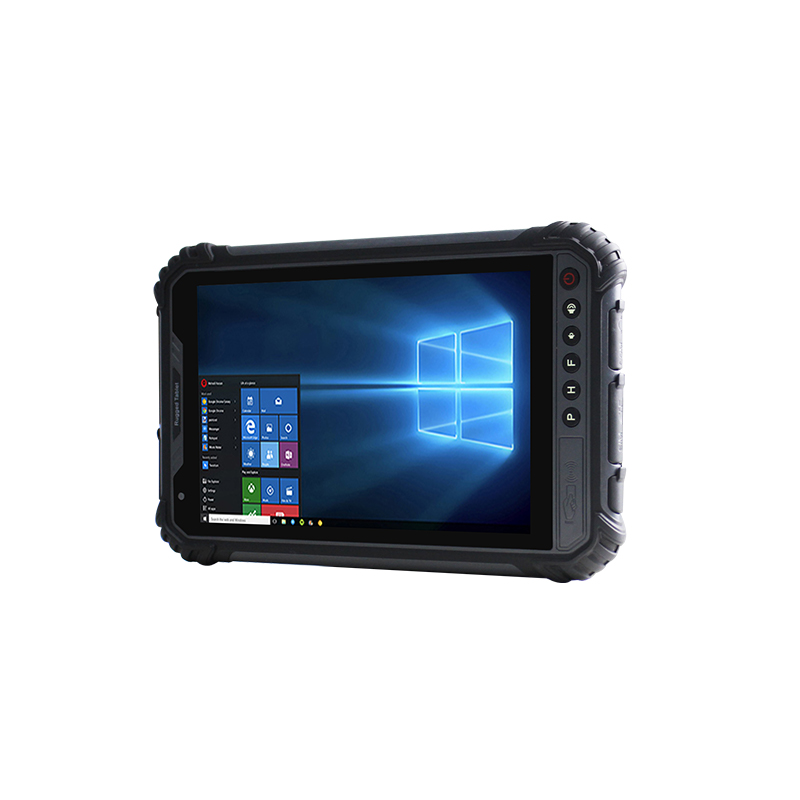

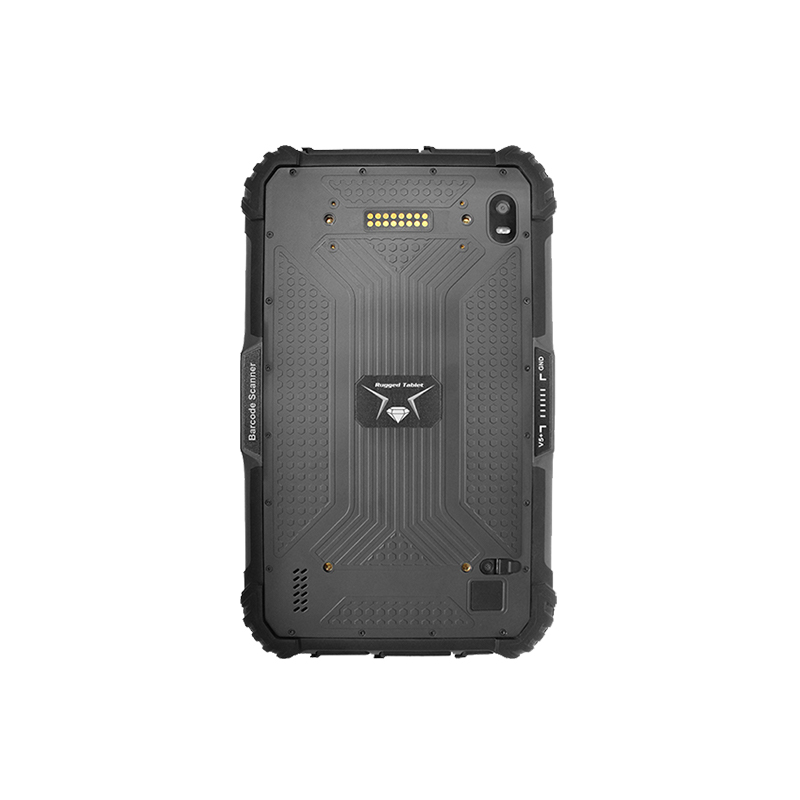

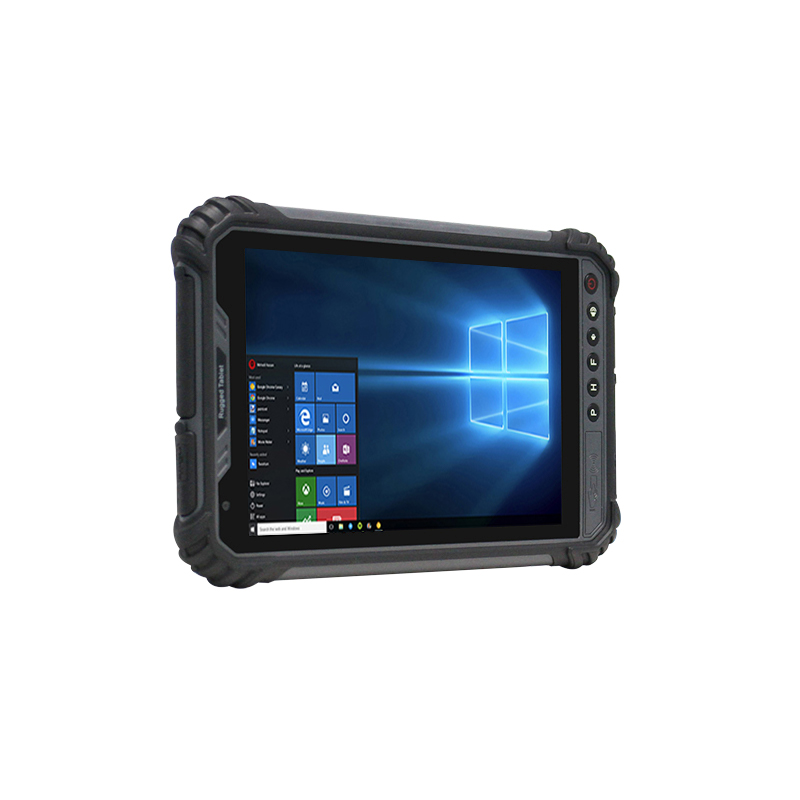

The ST9-W is an 8-inch rugged tablet powered by Intel Cherry Trail Z8350 quad-core processor (Turbo up to 1.92GHz), running Windows 10 Pro (Home/IoT optional). It features 4GB/64GB storage, 8-inch 1200×1920 IPS display (400nits MAX), 2MP front/5MP rear cameras, 7800mAh battery (7.5H video playback), 4G LTE connectivity, WiFi 5 and Bluetooth 4.2. With HDMI output, rich USB interfaces and IP65 protection, it delivers reliable performance for Windows-based industrial and enterprise field applications.

Key Features

  • Windows 10 Pro (Home/IoT optional) with Intel Cherry Trail Z8350 (1.44GHz, Turbo 1.92GHz)
  • Intel HD Graphics 400, 8-inch 1200×1920 IPS display (400nits MAX)
  • 4GB/64GB storage, 7800mAh battery with 7.5H video playback
  • 2MP front + 5MP rear cameras, stylus/wet hand touch support
  • 4G LTE (SLM770A module), Intel Stone Peak 3165 WiFi/Bluetooth 2-in-1
  • IP65 dust/waterproof, 1.2m drop resistance (MIL-STD-810G certified)
  • Rich interfaces: HDMI, USB 3.0×2, USB 2.0×1, RS232, pogopin expansion
  • Optional UHF RFID (M-500/M-301), 1D/2D barcode, fingerprint and high-precision GPS

Technical Specifications (ST9-W)

OS Windows 10 Pro (Windows 10 Home/IoT Optional)
CPU Intel Cherry Trail Z8350 (Quad Core, Quad Threads; 1.44GHz) - Turbo can reach 1.92GHz
GPU Intel HD Graphics 400
RAM/ROM 4GB/64GB
LCD 8 inch IPS Screen, 1200×1920; 400nits (MAX)
Touch Screen 10 Point Touch, Stylus Support, Wet Hand Touch Support
Camera Front: 2MP; Rear: 5MP
Power and Battery 7800mAh; 3.8V; Charging time: 3H30min; Usage time: 7H30min (50% volume, 60% brightness, playing local 1080P video)
WWAN TDD-LTE: B40; FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28; WCDMA: B1/B2/B4/B5/B8; GSM: B2/B3/B5/B8
Module: SLM770A (EC25-AUX in North America)
GPS BDS, GPS, GLONASS (Optional High Precision GPS: UM960)
WIFI 802.11a/b/g/n/ac (2.4G/5G), Wireless AP (Mobile AP); Module: Intel Stone Peak 3165 (WiFi/Bluetooth 2-in-1)
BLUETOOTH 4.2 Version
NFC 13.56 MHz, Distance: 1-3cm; ISO14443 TYPE A
Sensor Light sensor, Acceleration sensor, G-sensor
Size 236×144×17.4mm
Weight 670±20g

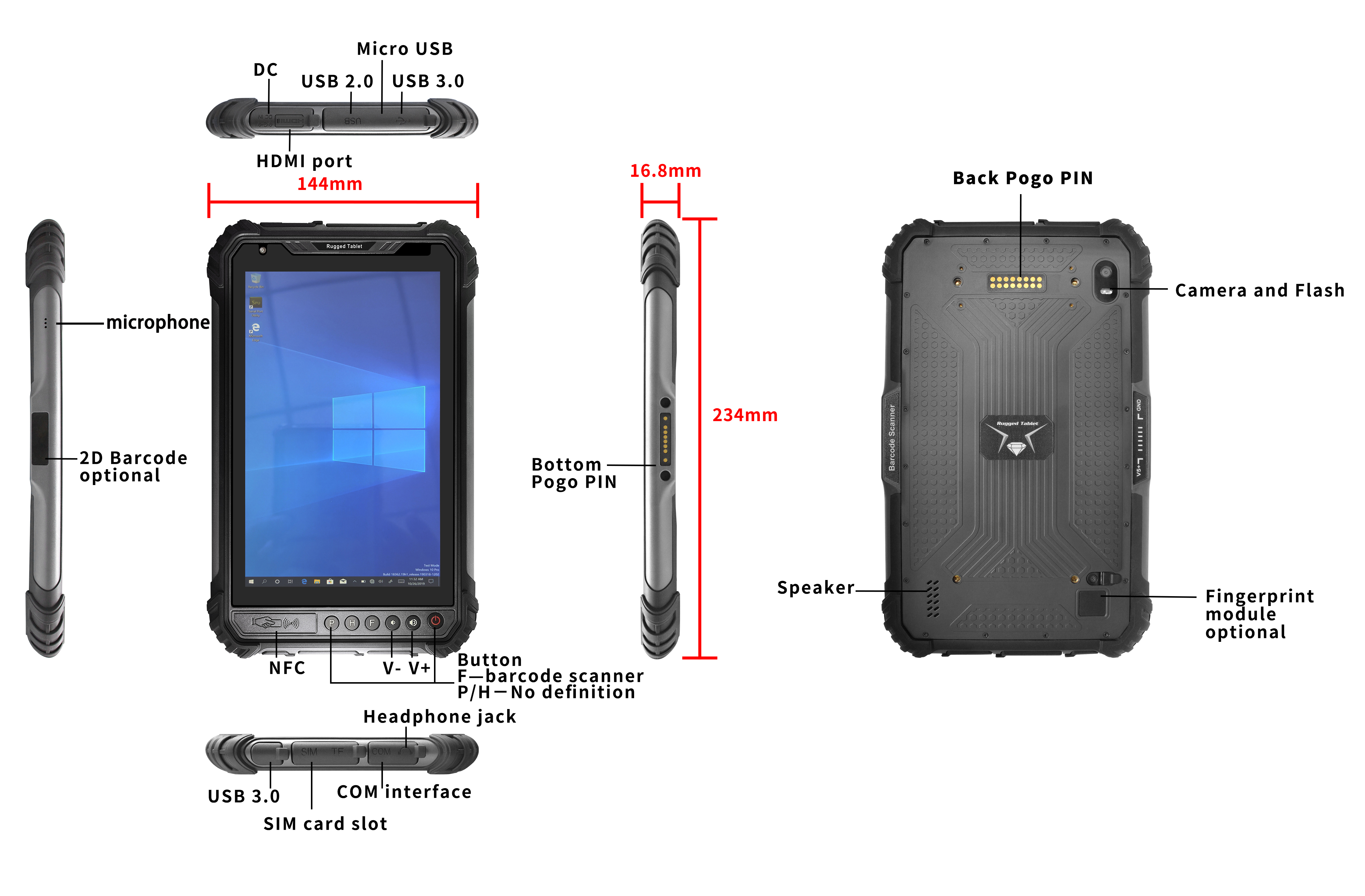

Interface In/Out Port HDMI*1, SIM Card Slot*1, RS232*1(mini-USB), Earphone*1, DC*1 (3.5*15mm), USB-A: USB 3.0 *2+USB 2.0*1
Bottom pogopin: USB 2.0; Charging; RS232
Back pogopin: USB 2.0; RS232
1D/2D Barcode Optional: NLS-N1 / M1 / SE2707
UHF RFID M-500 Optional: US (902-928MHz, 3-5M) / EU (865-868MHz, 3-5M)
M-301 Optional: US (902-928MHz, 5-8M) / EU (865-868MHz, 5-8M)
Fingerprint Optional: ZAZ-0A0 / 1020A
Proof Degree IP65 Anti-dust & Waterproof, 1.2m Dropping Resistance
Certification MIL-STD-810G, CE, FCC, 3C
Temperature Storage: -40°C to 60°C; Operation: -20°C to 55°C

Application Scenarios

🖥️
Windows Industrial Control
📊
Field Data Processing
📍
Precision GPS Navigation
🏭
Enterprise Field Service
