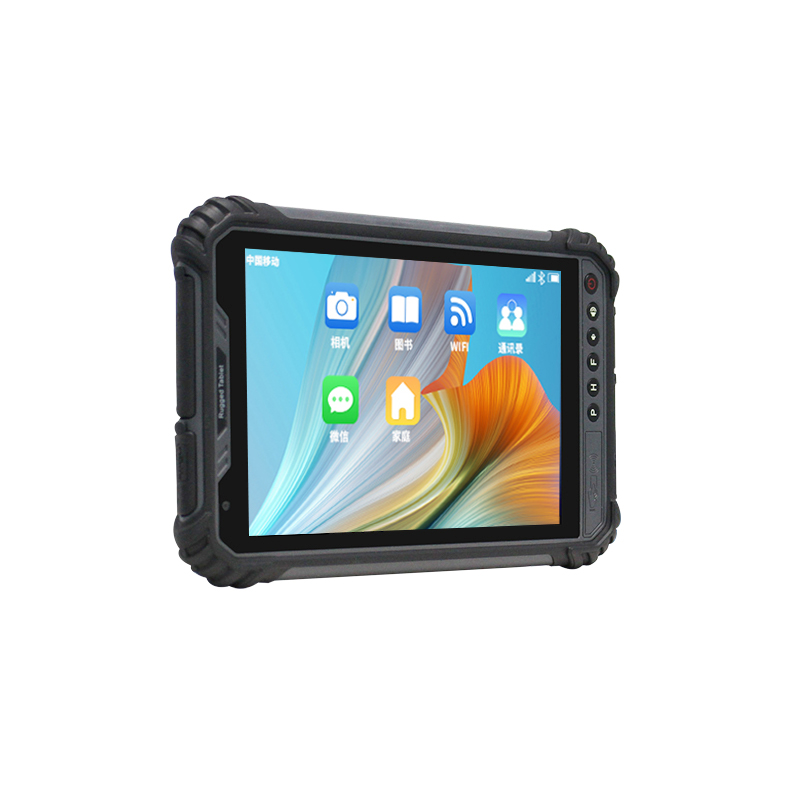

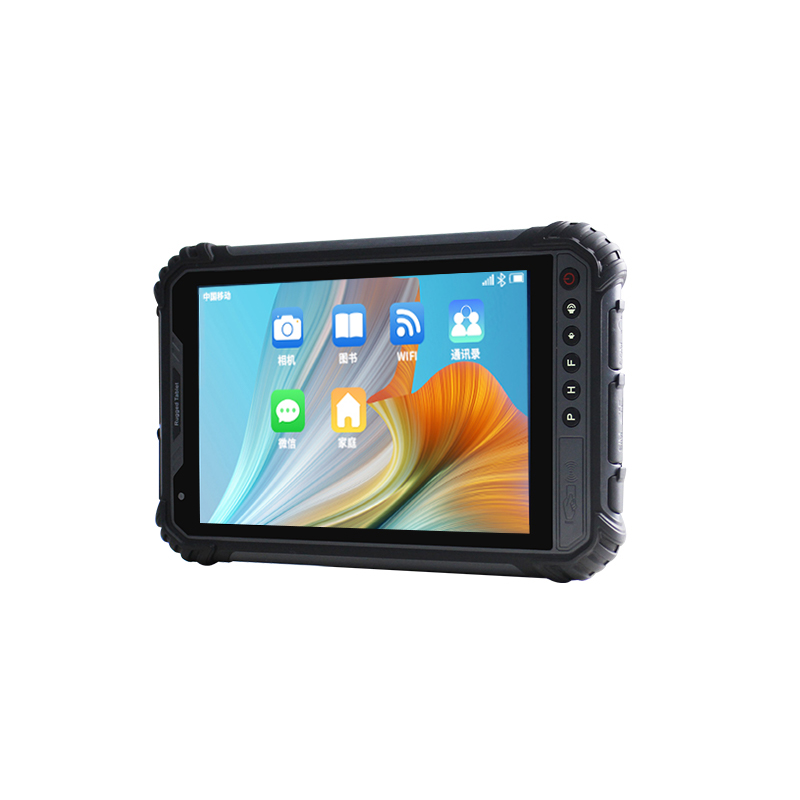

ST9-R2 Android 12

$0

The ST9-R2 Android rugged tablet is suitable for heavy industry: it is lightweight and easy to hold, making it suitable for production line inspection/equipment maintenance; domestic supply chain reduces costs and supports batch deployment; fingerprint + identity verification + hardware and software security architecture, IP65 protection and durability make it a high-performance, cost-effective, domestically produced controllable mobile terminal for heavy industry.

  • Buy Now
  • Add to shopping cart
In Stock:

Product Overview

The ST9-R2A is an 8-inch rugged tablet powered by Rockchip RK3588 octa-core processor (4×[email protected] + 4×[email protected]), running Android 12.0 system. It features flexible storage (8GB/256GB, 16GB/256GB or 8GB/512GB, 16GB/512GB optional), 8-inch 1200×1920 IPS display (430nits, 1000nits optional), 5MP front/13MP rear cameras, 5000mAh 7.7V battery, 4G LTE connectivity, WiFi 6 and Bluetooth 5.0. With rich interfaces (HDMI, USB 3.0×2), IP65 protection and expansion modules, it delivers high-performance for industrial IoT and multimedia applications.

Key Features

  • Android 12.0 with Rockchip RK3588 (4×[email protected] + 4×[email protected]) octa-core processor
  • ARM Mali G610 GPU, 8-inch 1200×1920 IPS display (430nits TYP, 1000nits optional)
  • Flexible storage: 8GB/256GB, 16GB/256GB (8GB/512GB, 16GB/512GB optional)
  • 5MP front + 13MP rear cameras with flash, stylus/wet hand touch support
  • 4G LTE (SLM770A module), WiFi 6 (802.11ax) and Bluetooth 5.0
  • IP65 dust/waterproof, 1.2m drop resistance (MIL-STD-810G certified)
  • Rich interfaces: HDMI, USB 3.0×2, USB 2.0×1, RS232, Type-C (OTG/fast charging)
  • Optional UHF RFID (M-500/M-301), 1D/2D barcode (NLS-N1/M1/SE2707) and fingerprint

Technical Specifications (ST9-R2A)

OS Android 12.0
CPU Rockchip RK3588 (Octa Core; 2.4GHz) - Cortex-A76×4 @2.4GHz, Cortex-A55×4 @1.8GHz
GPU ARM Mali G610
RAM/ROM 8GB/256GB, 16GB/256GB (8GB/512GB, 16GB/512GB Optional)
LCD 8 inch IPS, 1200×1920; 430nits (TYP); 800×1280 1000nits Optional
Touch Screen 10 Point Touch, Stylus Support, Wet Hand Touch Support
Camera Front: 5MP; Rear: 13MP (Flash light)
Power and Battery 5000mAh; 7.7V (38.5Wh)
WWAN LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66; LTE-TDD: B40; WCDMA: B1/B2/B4/B5/B8; GSM: 850/900/1800/1900
Module: SLM770A (EC25-AUX in North America)
GPS BDS, GPS, GLONASS
WIFI 802.11a/b/g/n/ac/ax (2.4G/5G), Wireless AP (Mobile AP); Support WiFi6; WiFi/Bluetooth 2-in-1
BLUETOOTH 5.0 Version
NFC 13.56 MHz, Distance: 1-3cm; ISO/IEC 14443A/B; ISO/IEC 15693
Sensor Light sensor, Magnetic sensor, Pressure sensor, G-sensor, Distance sensor, Acceleration sensor, Gyroscope, Motor
Size 236×144×17.4mm
Weight 700±50g

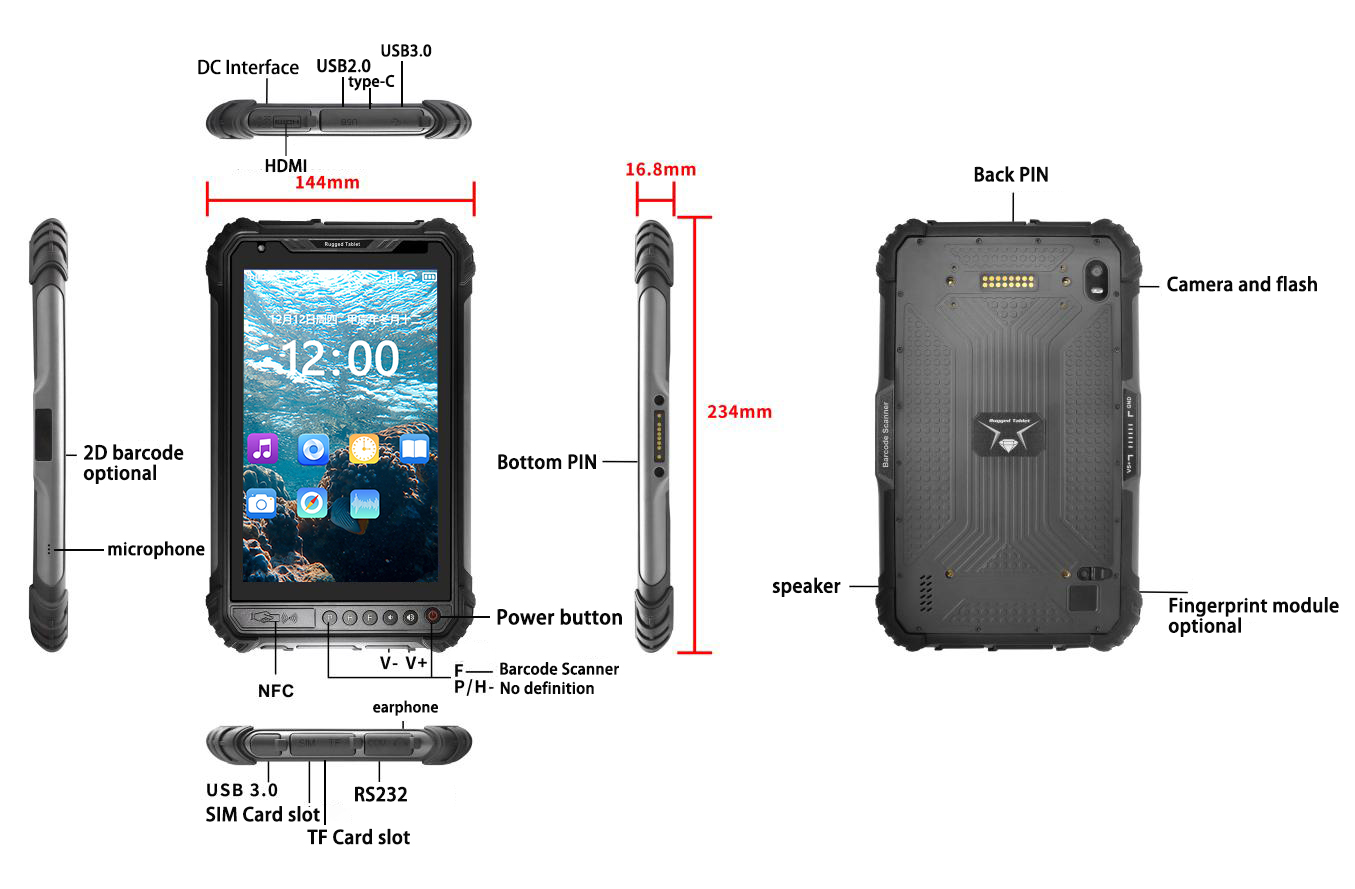

Interface In/Out Port Type-C *1 (OTG/fast charging), SIM Card Slot*1, TF Card Slot*1, Earphone*1, DC*1 (4.0*15mm), USB 2.0 *1, USB 3.0 *2, RS232*1(mini-USB), HDMI*1
Bottom pogopin: USB 2.0; Charging; RS232

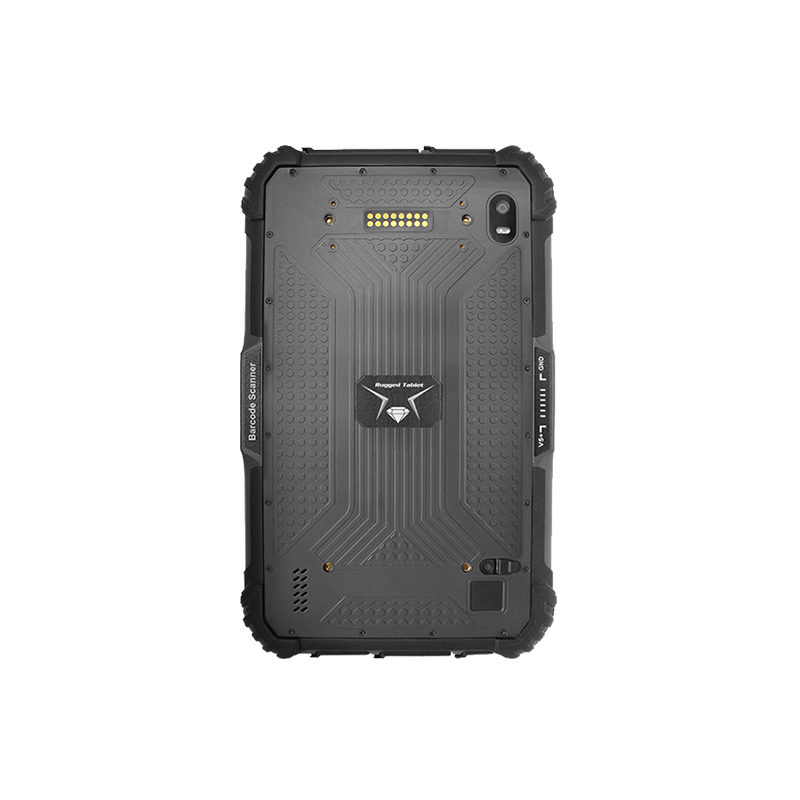

Back pogopin: USB 2.0; RS232
1D/2D Barcode Optional: NLS-N1 / M1 / SE2707
UHF RFID M-500 Optional: US (902-928MHz, 3-5M) / EU (865-868MHz, 3-5M)
M-301 Optional: US (902-928MHz, 5-8M) / EU (865-868MHz, 5-8M)
Fingerprint Optional: ZAZ-0A0 / 1020A
Proof Degree IP65 Anti-dust & Waterproof, 1.2m Dropping Resistance
Certification MIL-STD-810G, CE, FCC, 3C
Temperature Storage: -40°C to 60°C; Operation: -20°C to 55°C

Application Scenarios

🏭
Industrial IoT Control
📺
Multimedia Display
📦
Logistics & Warehousing
🔧
Field Maintenance
