Product

ST9-M

$0

Dubbed the "industrial all-around powerhouse," the ST9-M fits logistics/industrial scenarios. Boasting Windows + Intel i5, high-brightness display, full communication, IP65 protection, shock resistance, wide-temperature tolerance, and expandable functions, it’s your robust industrial work partner.

  • Buy Now
  • Add to shopping cart
In Stock:

Product Overview

The ST9-M is an 8-inch rugged tablet powered by Intel I5-8200Y dual-core processor (Turbo up to 3.90GHz), supporting Windows 10 Pro/Home/IoT, Windows 11 Pro or UbuntuKylin-20.04. It features TPM2.0 security, flexible storage (8GB/256GB up to 16GB/1TB), 8-inch 1200×1920 IPS display (1000nits optional), 5MP/13MP cameras, 5000mAh 7.7V battery, 4G LTE connectivity and IP65 dust/water resistance. With Intel UHD Graphics 615, rich interfaces and optional high-precision GPS, it delivers premium performance for Windows/Linux industrial and enterprise applications.

Key Features

  • Multi-system support: Windows 10/11 Pro/Home/IoT, UbuntuKylin-20.04 with Intel I5-8200Y (1.30GHz, Turbo 3.90GHz)
  • TPM2.0 security, Intel UHD Graphics 615 for enhanced graphic performance
  • 8-inch 1200×1920 IPS display (400nits MAX, 1000nits optional), stylus/wet hand support
  • Flexible storage: 8GB/256GB (8GB+128GB eMMC/16GB/16GB+128GB eMMC/512GB/1TB optional)
  • 4G LTE connectivity (SLM770A module), Intel Stone Peak 7265 Wi-Fi/Bluetooth 2-in-1 module
  • IP65 dust/waterproof, 1.2m drop resistance (MIL-STD-810G certified)
  • Rich interfaces: HDMI, USB 3.0×3, RS232, pogopin expansion for industrial use
  • Optional UHF RFID (M-500/M-301), 1D/2D barcode, fingerprint and high-precision GPS

Technical Specifications (ST9-M)

OS Windows 10 Pro (Windows 10 Home/IoT Optional, Windows 11 Pro Optional, UbuntuKylin-20.04 Optional)
CPU Intel I5-8200Y (Dual Core, Quad Threads; 1.30GHz) - Turbo can reach 3.90GHz
GPU Intel® UHD Graphics 615
TPM TPM2.0 Support
RAM 8GB (8GB+128GB(EMMC)/16GB/16GB+128GB(EMMC) optional)
ROM 256GB (512GB/1TB Optional)
LCD 8 inch IPS Screen, 1200×1920; 400nits (MAX); 800×1280 1000nits Optional
Touch Screen 10 Point Touch, Stylus Support, Wet Hand Touch Support
Camera Front: 5MP; Rear: 13MP
Power and Battery 5000mAh; 7.7V; Charging time: about 3H; Usage time: 6H30min (50% volume, 60% brightness, playing local 1080P video)
WWAN FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28; TDD-LTE: B40; WCDMA: B1/B2/B4/B5/B8; GSM/EDGE: B2/B3/B5/B8
Module: SLM770A (EC25-AUX in North America)
GPS BDS, GPS, GLONASS (Optional High Precision GPS: UM960)
WIFI 802.11a/b/g/n/ac (2.4G/5G), Wireless AP (Mobile AP); Module: Intel Stone Peak 7265 (WiFi/Bluetooth 2-in-1)
BLUETOOTH 4.2 Version
NFC 13.56 MHz, Distance: 1-3cm; ISO14443 TYPE A
Sensor Light sensor, Acceleration sensor, Gravity sensor
Size 236×144×17.4mm
Weight 700±50g

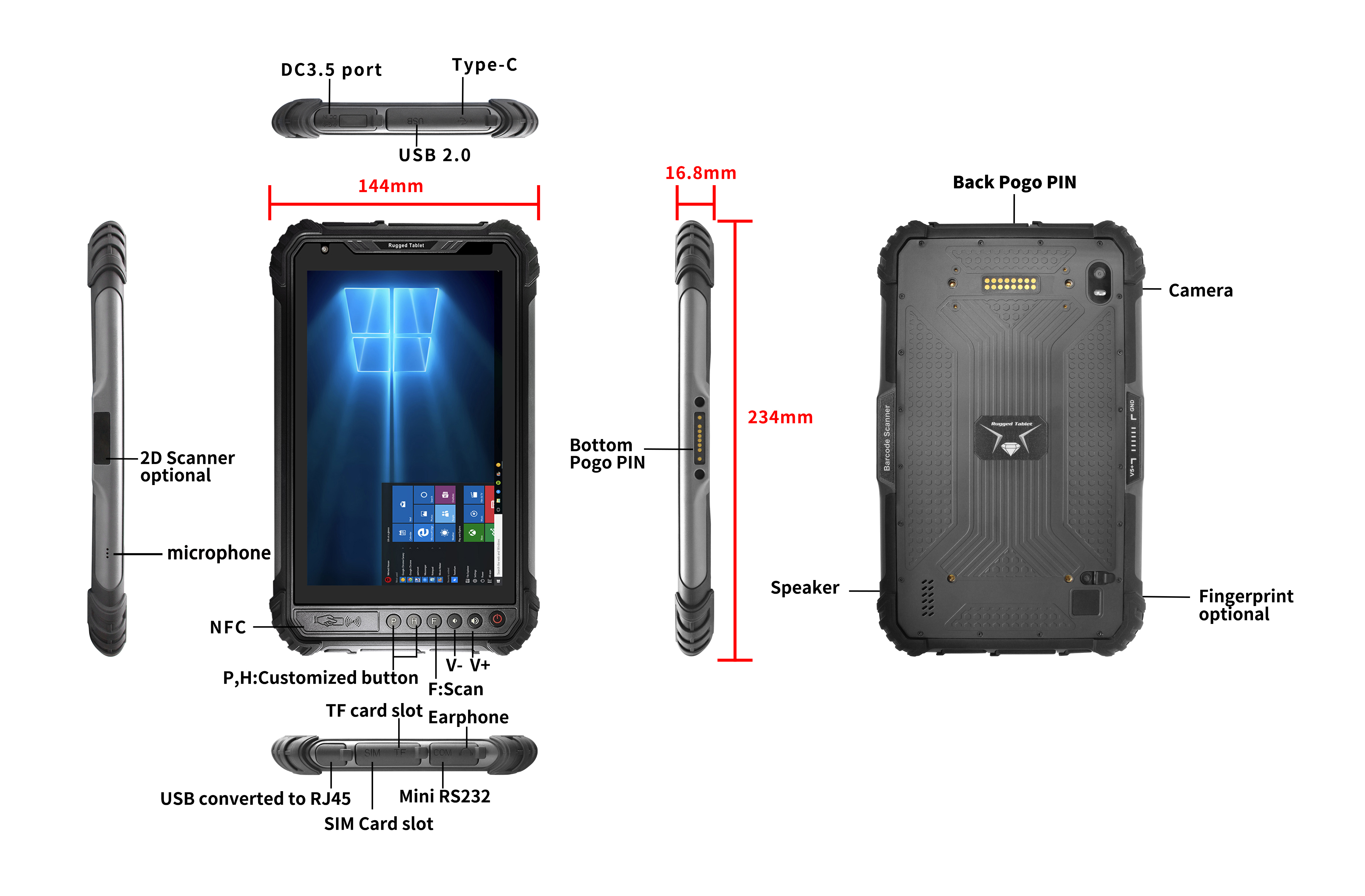

Interface In/Out Port HDMI*1, SIM Card Slot*1, RS232*1(mini-USB), Earphone*1, DC*1 (4.0*15mm), USB 3.0 *3
Bottom pogopin: USB 2.0; Charging; RS232
Back pogopin: USB 2.0; RS232
1D/2D Barcode Optional: NLS-N1 / M1 / SE2707
UHF RFID M-500 Optional: US (902-928MHz, 3-5M) / EU (865-868MHz, 3-5M)
M-301 Optional: US (902-928MHz, 5-8M) / EU (865-868MHz, 5-8M)
Fingerprint Optional: ZAZ-0A0 / 1020A
Proof Degree IP65 Anti-dust & Waterproof, 1.2m Dropping Resistance
Certification MIL-STD-810G, CE, FCC, 3C
Temperature Storage: -40°C to 60°C; Operation: -20°C to 55°C

Application Scenarios

🖥️
High-End Industrial Control
🐧
Linux Development & IoT
🔒
Enterprise Security Applications
🛠️
Professional Field Service
