ST9-J

$0

Industrial-grade ruggedized Windows tablet: The professional choice! Win10/11 optional, Intel quad-core processor + 8GB RAM + 256GB storage, smooth operation of professional software. 400 nits (1000 nits optional), 5000mAh long battery life, 4G/WiFi + precise positioning. IP65 protection + 1.2-meter drop resistance, durable in harsh environments. Customizable modules, suitable for logistics, medical, and industrial applications, high performance and enhanced reliability!

  • Buy Now
  • Add to shopping cart
In Stock:

Product Overview

The ST9-J is an 8-inch rugged tablet powered by Intel Celeron N5100 quad-core processor (Turbo up to 2.80GHz), supporting Windows 10 Pro/Home or Windows 11 Pro. It features TPM2.0 security, 8GB/256GB storage (4GB/128GB/512GB optional), 8-inch 1200×1920 IPS display (1000nits optional), 5MP/13MP cameras, 5000mAh 7.7V battery, 4G LTE connectivity and IP65 dust/water resistance. With rich interfaces, optional high-precision GPS and expansion modules, it delivers reliable performance for Windows ecosystem industrial applications.

Key Features

  • Windows 10 Pro (Home/11 Pro optional) with Intel Celeron N5100 (1.10GHz, Turbo 2.80GHz)
  • TPM2.0 security support, UHD Graphics 24 EUs for enhanced visual performance
  • 8-inch 1200×1920 IPS display (400nits MAX, 1000nits optional), stylus/wet hand support
  • Flexible storage: 8GB/256GB (4GB/128GB/512GB optional) with 5000mAh 7.7V battery
  • 4G LTE connectivity (SLM770A module), dual-band Wi-Fi (Realtek 8822CE), Bluetooth 4.2
  • IP65 dust/waterproof, 1.2m drop resistance (MIL-STD-810G certified)
  • Rich interfaces: HDMI, USB 3.0×3, RS232, pogopin expansion for industrial use
  • Optional UHF RFID (M-500/M-301), 1D/2D barcode, fingerprint and high-precision GPS

Technical Specifications (ST9-J)

OS Windows 10 Pro (Windows 10 Home Optional, Windows 11 Pro Optional)
CPU Intel Celeron N5100 (Quad Core, Quad Threads; 1.10GHz) - Turbo can reach 2.80GHz
GPU UHD Graphics 24 EUs
TPM TPM2.0 Support
RAM 8GB (4GB optional)
ROM 256GB (128GB / 512GB Optional)
LCD 8 inch IPS Screen, 1200×1920; 400nits (MAX); 800×1280 1000nits Optional
Touch Screen 10 Point Touch, Stylus Support, Wet Hand Touch Support
Camera Front: 5MP; Rear: 13MP
Power and Battery 5000mAh; 7.7V; Charging time: about 3H; Usage time: about 7H (50% volume, 60% brightness, playing local 1080P video)
WWAN FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28; TDD-LTE: B40; WCDMA: B1/B2/B4/B5/B8; GSM/EDGE: B2/B3/B5/B8
Module: SLM770A (EC25-AUX in North America)
GPS BDS, GPS, GLONASS (Optional High Precision GPS: UM960)
WIFI 802.11a/b/g/n/ac (2.4G/5G), Wireless AP (Mobile AP); Module: Realtek 8822CE (WiFi/Bluetooth 2-in-1)
BLUETOOTH 4.2 Version
NFC 13.56 MHz, Distance: 1-3cm; ISO14443 TYPE A
Sensor Light sensor, Acceleration sensor, Gravity sensor
Size 236×144×17.4mm
Weight 700±50g

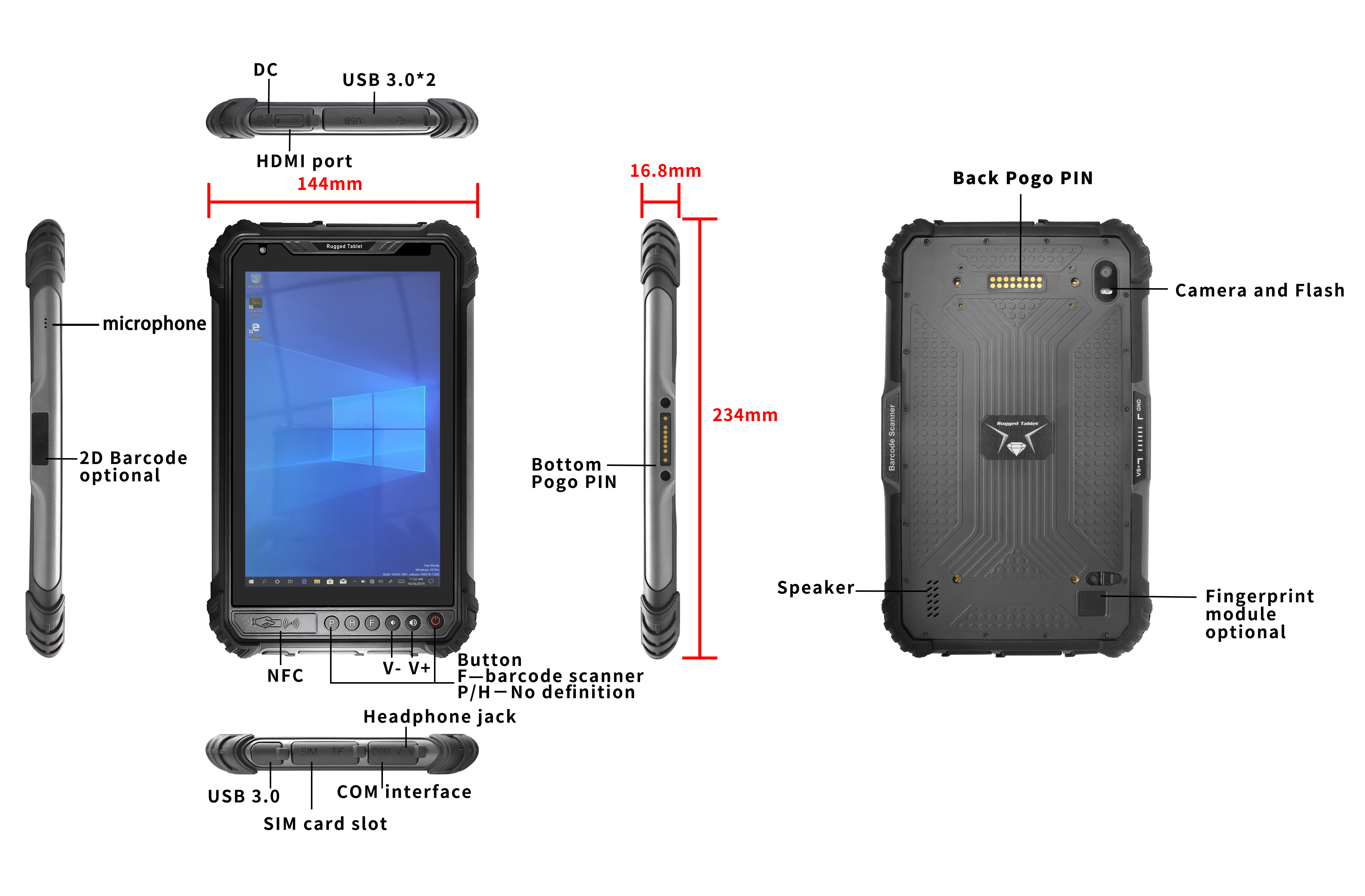

Interface In/Out Port HDMI*1, SIM Card Slot*1, RS232*1(mini-USB), Earphone*1, DC*1 (4.0*15mm), USB 3.0 *3
Bottom pogopin: USB 2.0; Charging; RS232
Back pogopin: USB 2.0; RS232
1D/2D Barcode Optional: NLS-N1 / M1 / SE2707
UHF RFID M-500 Optional: US (902-928MHz, 3-5M) / EU (865-868MHz, 3-5M)
M-301 Optional: US (902-928MHz, 5-8M) / EU (865-868MHz, 5-8M)
Fingerprint Optional: ZAZ-0A0 / 1020A
Proof Degree IP65 Anti-dust & Waterproof, 1.2m Dropping Resistance
Certification MIL-STD-810G, CE, FCC, 3C
Temperature Storage: -40°C to 60°C; Operation: -20°C to 55°C

Application Scenarios

🖥️
Windows Industrial Control
🔒
Secure Enterprise Use
📦
Logistics Management
🛠️
Field Service & Maintenance
