Product

ST13-U

$0

A rugged tablet with Windows 11 Pro system: equipped with a powerful Intel i5 deca-core processor, a 13.3-inch HD screen with long battery life, and efficient 4G/5G/WiFi 6 connectivity; IP65 protection and drop-resistant design adapt to complex scenarios, built-in cooling fan and large storage, and supports customization, making it a reliable tool for professional operations in logistics, industry and other fields.

  • Buy Now
  • Add to shopping cart
In Stock:

Product Overview

The ST13-U is a 13.3-inch rugged tablet powered by Intel 12th Gen Core I5-1235U (10 cores/12 threads, up to 4.4GHz) or optional I7-1255U (10 cores/12 threads, up to 4.7GHz), running Windows 11 Pro with TPM2.0 support. It features scalable LPDDR5 RAM (up to 64GB) and M.2 SATA storage (128GB/256GB/512GB), 13.3-inch 1080×1920 IPS display (400nits MIN/450nits TYP), 5MP front/8MP rear cameras, 8000mAh 7.6V battery (6000mAh optional), 4G LTE connectivity (SLM770A module), Intel® WiFi 6 AX201 and Bluetooth 5.2. With IP65 dust/waterproof, 1.2m drop resistance, Gigabit RJ45 and HDMI, it's designed for high-performance Windows 11 industrial applications requiring advanced processing and secure environments.

Key Features

  • Windows 11 Pro system with TPM2.0, Intel I5-1235U/I7-1255U 12th Gen processors (10 cores/12 threads)
  • Intel® Iris® Xe Graphics (80EU/96EU), LPDDR5 RAM (up to 64GB) and M.2 SATA storage (128GB-512GB)
  • 13.3-inch 1080×1920 IPS display (400nits MIN/450nits TYP), 10-point touch with stylus & wet hand support
  • 8000mAh 7.6V battery (6000mAh optional), 4G LTE connectivity (SLM770A/EC25-AUX for NA)
  • Intel® WiFi 6 AX201 (WiFi/Bluetooth 2-in-1), Bluetooth 5.2, NFC (ISO14443 TYPE A)
  • Rich interfaces: HDMI, dual USB3.2, Type-C (fast charging), Gigabit RJ45, dual aviation interfaces
  • IP65 dust/waterproof, 1.2m drop resistance, 3-in-1 sensor suite for industrial adaptability
  • 13.3-inch large screen design (331.7×203.2×19.5mm) for advanced Windows industrial workflows

Technical Specifications (ST13-U)

OS Windows 11 Pro
CPU Intel I5-1235U (10 cores, 12 threads; 1.3GHz, turbo 4.4GHz / 15W)
I7-1255U optional (10 cores, 12 threads; 1.7GHz, turbo 4.7GHz / 15W)
GPU Intel® Iris® Xe Graphics 80EU (I5)
I7: Intel® Iris® Xe Graphics 96EU (I7)
TPM Support TPM2.0
RAM/ROM I5: RAM 8GB/16GB (max 64GB); ROM 128GB/256GB/512GB
I7: RAM 16GB/32GB (max 64GB); ROM 128GB/256GB/512GB
RAM: LPDDR5 496 Ball; ROM: M.2 2242 SATA
LCD 13.3 inch; 1080×1920; IPS
400nits (MIN), 450nits (TYP)
Touch Screen 10 Point Touch
Stylus Support; Wet Hand Touch Support
Camera Front: 5MP; Rear: 8MP
Power and Battery 8000mAh / 7.6Vdc (60.80Wh)
6000mAh optional
WWAN FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28; TDD_LTE: B40
WCDMA: B1/B2/B4/B5/B8; GSM: B2/B3/B5/B8
Module: SLM770A (EC25-AUX in North America)
GPS BDS, GPS, GLONASS
WIFI 802.11a/b/g/n/ac/ax Wireless Internet; Wireless AP (Mobile AP); 2.4G, 5G
Support WIFI 6
Intel® WiFi 6 AX201 (WiFi/Bluetooth 2-in-1)
BLUETOOTH 5.2 Version
NFC 13.56 MHz, Distance: 1-3cm; ISO14443 TYPE A
MIC Sensitivity: -32±2d; Output Impedance: 2.2kΩx1
SPEAKER 8Ω 0.8 Watt *2
Sensor Light sensor, Acceleration sensor, Gravity sensor

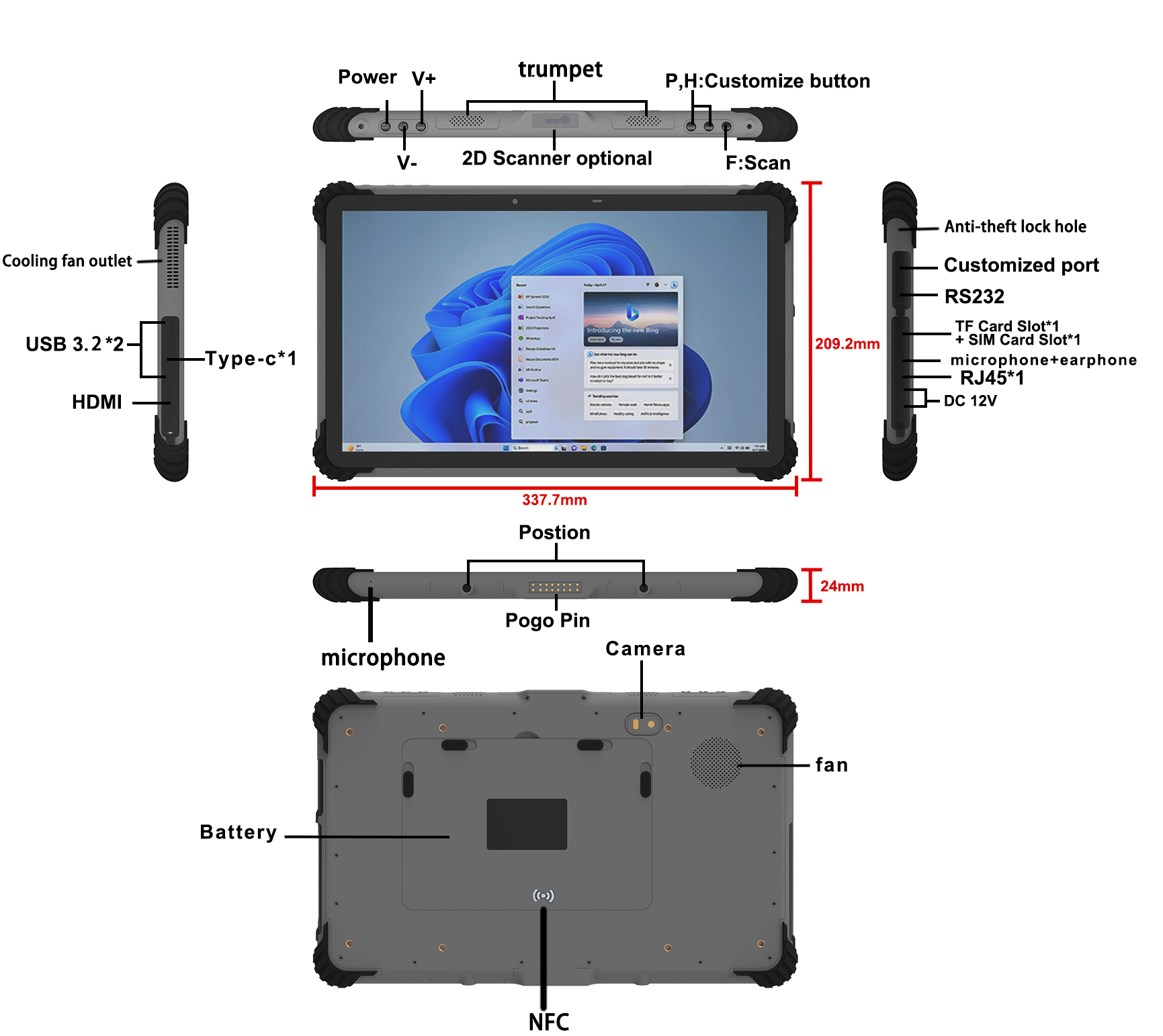

Size 331.7×203.2×19.5mm
Weight 1450±50g
Language Multi language
Interface In/Out Port HDMI Type A*1; USB3.2*2; Type-c*1 (Supports fast charging); Anti-theft lock hole; Aviation interface x2 (customized & RS232, RS232 only TX RX GND); Card slot (SIM+TF); Headphone Jack (∮3.5mm); Ethernet RJ45 (10/100/1000M); DC power interface (∮4.0mm)
Bottom pogopin: USB 2.0; Charging; RS232
Button V+ -, Power, "F" for Barcode Scan
Customized Button: P, H (Default No Functionality)
1D/2D Barcode Optional: Honeywell N4680 Optional
Accessories Blue Box; DC Charger (12V 4A); Carry strap; Wrist strap; Screw & Screwdriver
Optional: Docking Station; Holder STA131; Car Holder STA03
Multi-Media (Hardware Decoding) Photo Viewer: BMP, JPG, GIF, PNG
Video Format: MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (UP TO 1080P)
Audio Format: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (need license)
Proof Degree IP65 Anti-dust & Waterproof, 1.2m Dropping Resistance
Certification CE, FCC, 3C
Temperature Storage Temperature: -40°C to 60°C; Operation Temperature: -20°C to 55°C

Application Scenarios

💻
High-Performance Windows 11 Workstations
🎨
Professional Industrial Design
🔐
TPM2.0 Secure Business Environments
📊
Advanced Data Processing Centers
