Product

ST13-R2A

$0

An industry-grade rugged tablet running Android 12: Powered by a Rockchip octa-core processor, featuring a 13.3-inch HD screen with long battery life, and efficient 4G/5G/WiFi 6 connectivity; IP65 protection and drop-resistant design adapt to complex scenarios, built-in cooling fan and large storage, and support for customized modules, making it a core tool for professional operations in logistics, industry, and other fields.

  • Buy Now
  • Add to shopping cart
In Stock:

Product Overview

The ST13-R2A is a 13.3-inch rugged tablet powered by Rockchip RK3588 octa-core processor (4×[email protected] + 4×[email protected]), running Android 12 system. It features 8GB/256GB or 16GB/256GB storage (8GB/512GB, 16GB/512GB optional), 13.3-inch 1080×1920 IPS display, 5MP front/13MP rear cameras, 8000mAh 7.6V battery (6000mAh optional), 4G LTE connectivity (SLM770A module), WiFi 6 and Bluetooth 5.0. With HDMI, dual USB (2.0+3.0), Gigabit RJ45, IP65 dust/waterproof and 1.2m drop resistance, it's designed for high-performance Android industrial applications requiring large-screen visualization and versatile connectivity.

Key Features

  • Android 12 system, Rockchip RK3588 octa-core processor (4×[email protected] + 4×[email protected])
  • ARM Mali G610 GPU, flexible storage options (8GB/256GB, 16GB/256GB, 8GB/512GB, 16GB/512GB)
  • 13.3-inch 1080×1920 IPS display, 10-point touch with stylus & wet hand support
  • 8000mAh 7.6V battery (6000mAh optional), 4G LTE connectivity via SLM770A module
  • WiFi 6 (802.11ax), Bluetooth 5.0, multi-protocol NFC (ISO/IEC 14443A/B; ISO/IEC 15693)
  • Rich interfaces: HDMI, USB-A 2.0+3.0, Type-C, Gigabit RJ45, dual aviation interfaces
  • IP65 dust/waterproof, 1.2m drop resistance, 8-in-1 sensor suite for industrial adaptability
  • 13.3-inch large screen design (331.7×203.2×19.5mm) for enhanced industrial workflows

Technical Specifications (ST13-R2A)

OS Android 12
CPU Rockchip RK3588 (Octa Core; 2.4GHz)
Cortex-A76×4 @2.4GHz, Cortex-A55×4 @1.8GHz
GPU ARM Mali G610
RAM/ROM 8GB/256GB，16GB/256GB
8GB/512GB, 16GB/512GB Optional
LCD 13.3 inch; 1080×1920; IPS Screen
Touch Screen 10 Point Touch
Stylus Support; Wet Hand Touch Support
Camera Front: 5MP; Rear: 13MP
Power and Battery 8000mAh / 7.6Vdc (60.80Wh)
6000mAh optional
WWAN FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66
TDD_LTE: B40
WCDMA: B1/B2/B4/B5/B8
GSM/EDGE: B2/B3/B5/B8
Module: SLM770A
GPS BDS, GPS, GLONASS
WIFI 802.11a/b/g/n/ac/ax Wireless Internet; Wireless AP (Mobile AP); 2.4G, 5G
Support WIFI 6
WiFi/Bluetooth 2-in-1
BLUETOOTH 5.0 Version
NFC 13.56 MHz, Distance: 1-3cm; ISO/IEC 14443A/B; ISO/IEC 15693
MIC Sensitivity: -32±2d; Output Impedance: 2.2kΩx1
SPEAKER 8Ω 0.8 Watt *2
Sensor Light sensor, Magnetic sensor, Pressure sensor, G-sensor, Distance sensor, Acceleration sensor, Gyroscope, Motor
Size 331.7×203.2×19.5mm
Weight 1450 ± 50g (for reference only)
Language Multi language

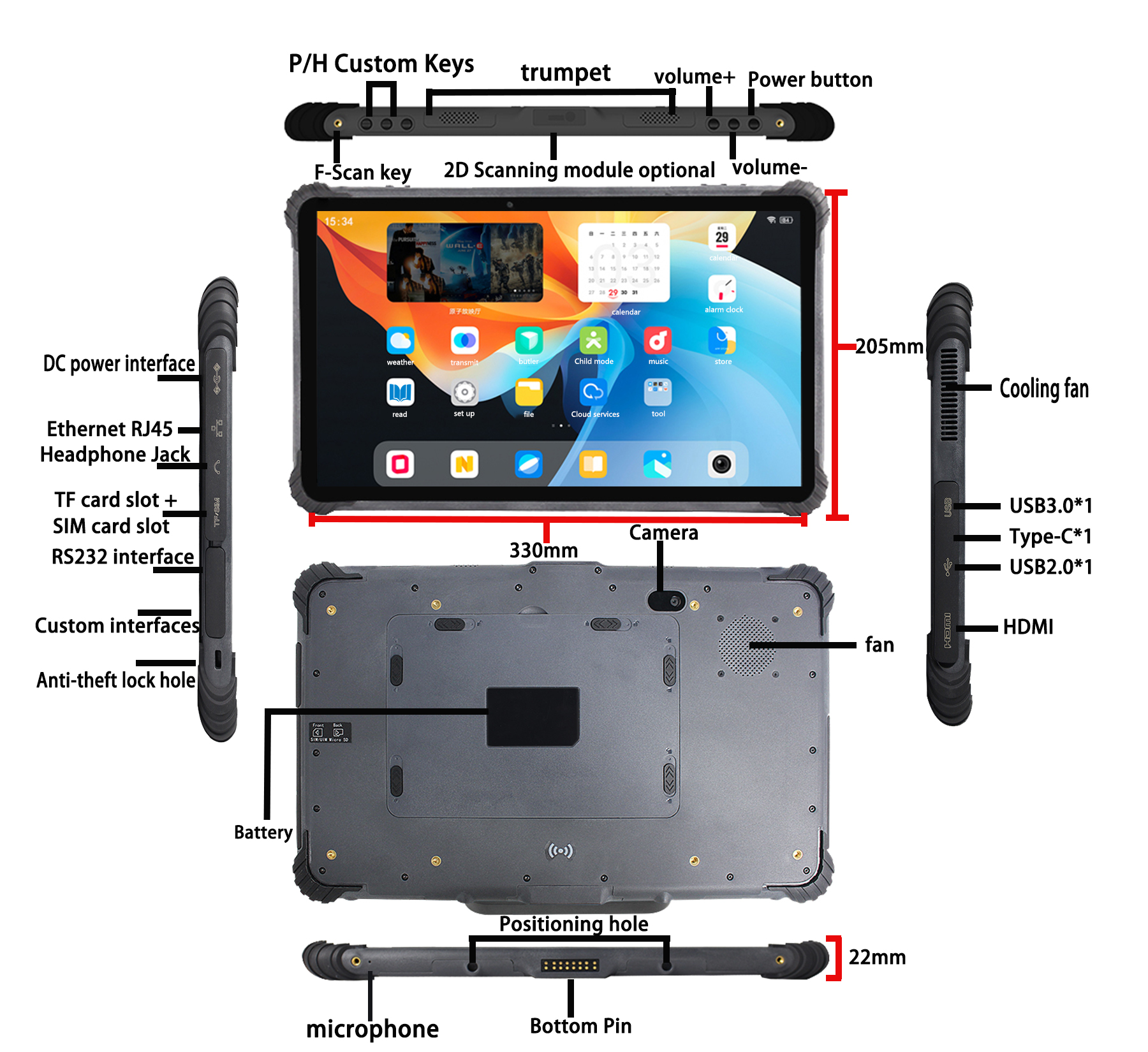

Interface In/Out Port HDMI Type A*1; USB-A (USB 2.0 *1+USB 3.0 *1); Type-c*1; Anti-theft lock hole; Aviation interface x2 (customized & RS232, RS232 only TX RX GND); Card slot (SIM+TF); Headphone Jack (∮3.5mm); Ethernet RJ45 (10/100/1000M); DC power interface (∮4.0mm)
Bottom pogopin: USB 2.0; Charging; RS232
Button V+ -, Power, "F" for Barcode Scan
Customized Button: P, H (Default No Functionality)
1D/2D Barcode Optional: Honeywell N4680 Optional
Accessories Blue Box; DC Charger (12V 4A); Carry strap; Wrist strap; Screw & Screwdriver
Optional: Docking Station; Holder STA131; Car Holder STA03
Multi-Media (Hardware Decoding) Photo Viewer: BMP, JPG, GIF, PNG
Video Format: MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (UP TO 1080P)
Audio Format: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (need license)
Proof Degree IP65 Anti-dust & Waterproof, 1.2m Dropping Resistance
Certification CE, FCC, 3C
Temperature Storage Temperature: -40°C to 60°C; Operation Temperature: -20°C to 55°C

Application Scenarios

⚡
High-Performance Android Industrial
📺
Large-Screen Data Visualization
🔌
Multi-Interface Industrial Control
🏭
Industrial IoT & Automation
