Product

ST13-J

$0

This Windows 11 Pro-rated rugged tablet is an industry-grade product: equipped with an Intel quad-core processor, a 13.3-inch high-definition screen for clear visuals, and stable WiFi/5G connectivity; IP65 protection adapts to complex scenarios, and features practical buttons and interfaces, as well as customizable storage, making it a reliable tool for efficient operations in logistics, finance, industry, and other fields.

  • Buy Now
  • Add to shopping cart
In Stock:

Product Overview

The ST13-J is a 13.3-inch rugged tablet powered by Intel Celeron N5100 quad-core processor (1.10GHz, turbo up to 2.80GHz), running Windows 10 Pro (Windows 11 Pro optional) with TPM2.0 support. It features 8GB RAM (4GB optional) and 256GB ROM (128GB/512GB optional), 13.3-inch 1080×1920 IPS display (260nits MIN/400nits TYP), 5MP front/13MP rear cameras, 8000mAh 7.6V battery (6000mAh optional), 4G LTE connectivity (SLM770A module), WiFi 802.11a/b/g/n/ac and Bluetooth 4.2. With IP65 dust/waterproof, 1.2m drop resistance, Gigabit RJ45 and HDMI, it's designed for Windows-based industrial applications requiring large-screen visualization and reliable performance.

Key Features

  • Windows 10 Pro/11 Pro optional, Intel Celeron N5100 quad-core processor (1.10GHz/2.80GHz turbo) with TPM2.0
  • UHD Graphics 24 EUs, 8GB/4GB RAM options, 256GB/128GB/512GB ROM configurations
  • 13.3-inch 1080×1920 IPS display (260nits MIN/400nits TYP), 10-point touch with stylus & wet hand support
  • 8000mAh 7.6V battery (6000mAh optional), 4G LTE connectivity via SLM770A module (EC25-AUX in NA)
  • Rich interfaces: HDMI, dual USB3.0, Gigabit RJ45, dual aviation interfaces, anti-theft lock hole
  • IP65 dust/waterproof, 1.2m drop resistance, optional Honeywell N4680/NLS-N1 barcode scanner
  • 13.3-inch large screen design (331.7×203.2×19.5mm) for enhanced industrial visualization workflows
  • Multi-protocol NFC (13.56MHz) and comprehensive sensor suite for industrial environment adaptability

Technical Specifications (ST13-J)

OS Windows 10 Pro
Windows 11 Pro optional
CPU Intel Celeron N5100 (Quad Core, Quad Threads; 1.10GHz)
Turbo can reach 2.80GHz
GPU UHD Graphics 24 EUs
TPM Support TPM2.0
RAM 8GB
4GB Optional
ROM 256GB
128GB / 512GB Optional
LCD 13.3 inch; 1080×1920; IPS
260nits (MIN), 400nits (TYP)
Touch Screen 10 Point Touch
Stylus Support; Wet Hand Touch Support
Camera Front: 5MP; Rear: 13MP
Power and Battery 8000mAh / 7.6Vdc (60.80Wh)
6000mAh optional
WWAN FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28; TDD_LTE: B40
WCDMA: B1/B2/B4/B5/B8; GSM/EDGE: B2/B3/B5/B8
Module: SLM770A (EC25-AUX in North America)
GPS BDS, GPS, GLONASS
WIFI 802.11a/b/g/n/ac Wireless Internet; Wireless AP (Mobile AP); 2.4G, 5G
Module: Realtek 8822CE (WiFi/Bluetooth 2-in-1)
BLUETOOTH 4.2 Version
NFC 13.56 MHz, Distance: 1-3cm; ISO14443 TYPE A
MIC Sensitivity: -32±2d; Output Impedance: 2.2kΩx1
SPEAKER 8Ω 0.8 Watt *2
Sensor Light sensor, Acceleration sensor, Gravity sensor
Size 331.7×203.2×19.5mm
Weight 1450±50g
Language Multi language

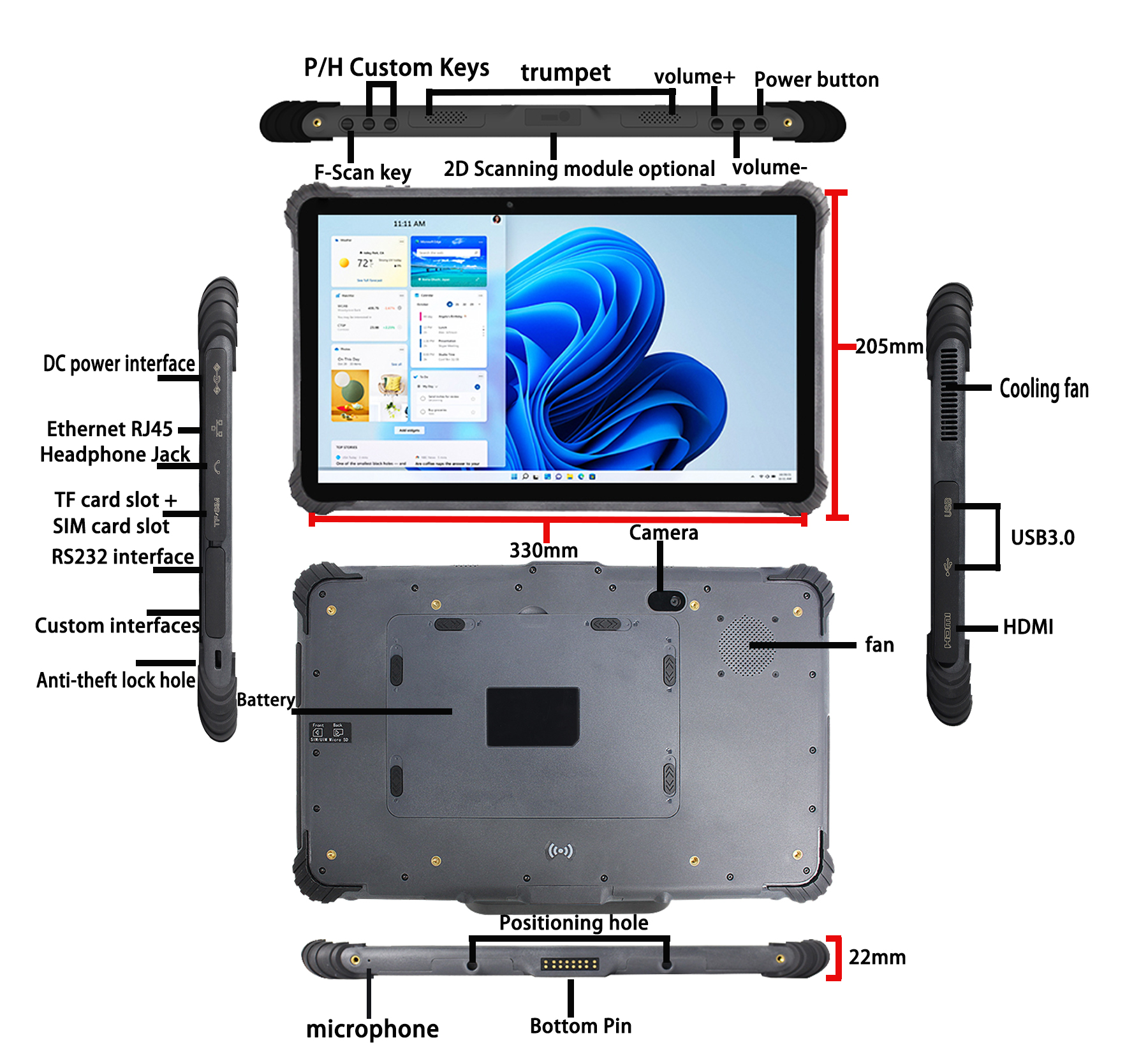

Interface In/Out Port HDMI Type A*1; USB3.0*2; Anti-theft lock hole; Aviation interface x2 (customized & RS232, RS232 only TX RX GND); Card slot (SIM+TF); Headphone Jack (∮3.5mm); Ethernet RJ45 (10/100/1000M); DC power interface (∮4.0mm)
Bottom pogopin: USB 2.0; RS232; Charging
Button V+ -, Power, "F" for Barcode Scan
Customized Button: P, H (Default No Functionality)
1D/2D Barcode Optional: Honeywell N4680 Optional, NLS-N1 Optional
Accessories Blue Box; DC Charger (12V 4A); Carry strap; Wrist strap; Screw & Screwdriver
Optional: Docking Station; Holder STA131; Car Holder STA03
Multi-Media (Hardware Decoding) Photo Viewer: BMP, JPG, GIF, PNG
Video Format: MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (UP TO 1080P)
Audio Format: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (need license)
Proof Degree IP65 Anti-dust & Waterproof, 1.2m Dropping Resistance
Certification CE, FCC, 3C
Temperature Storage Temperature: -40°C to 60°C; Operation Temperature: -20°C to 55°C

Application Scenarios

🖥️
Windows Industrial Workstations
📊
Large-Screen Data Visualization
🔒
TPM2.0 Secure Environments
🏭
Industrial Control & Monitoring
