Product

ST11-W

$0

Windows rugged tablet for diverse scenarios: Win10 runs work apps smoothly. 10.1-inch HD screen, 12000mAh all-day battery. Stable 4G/WiFi, IP65 protection + drop resistance handle industrial/automotive environments. Customizable, practical for logistics/chemical work.

  • Buy Now
  • Add to shopping cart
In Stock:

Product Overview

The ST11-W is a 10.1-inch rugged tablet powered by Intel Cherry Trail Z8350 quad-core processor (1.44GHz, turbo up to 1.92GHz), running Windows 10 (Home/Pro/IoT optional). It features 4GB/64GB storage, 10.1-inch 1200×1920 display (450nits), 2MP front/5MP rear cameras, dual battery design (12000mAh main + 2550mAh secondary), 4G LTE connectivity (SLM770A module), WiFi 802.11a/b/g/n/ac, Bluetooth 4.2 and NFC. With IP65 dust/waterproof, 1.2m drop resistance and optional UHF RFID/fingerprint/High Precision GPS, it's designed for cost-effective Windows-based industrial and IoT applications.

Key Features

  • Windows 10 (Home/Pro/IoT optional), Intel Cherry Trail Z8350 quad-core processor (1.44GHz/1.92GHz turbo)
  • Intel HD Graphics 400, 10.1-inch 1200×1920 display (450nits), 10-point touch with stylus & wet hand support
  • 4GB/64GB storage, dual battery design (12000mAh+2550mAh) for extended operation time
  • 2MP front + 5MP rear cameras, 4G LTE multi-band connectivity (SLM770A module), WiFi 802.11a/b/g/n/ac
  • Rich interfaces: USB 3.0/2.0, HDMI, RJ45, RS232, dual pogopin connectors for versatile connectivity
  • IP65 dust/waterproof, 1.2m drop resistance, MIL-STD-810G certification, optional UHF RFID/fingerprint/UM960 GPS
  • Cost-effective Windows IoT solution with compact design (268.9×176.8×18mm) and lightweight (1140±50g)
  • Multi-media hardware decoding support for 1080P video playback and various audio formats

Technical Specifications (ST11-W)

OS Windows 10 (Home/Pro/IoT Optional)
CPU Intel Cherry Trail Z8350 (Quad Core, Quad Threads; 1.44GHz)
Turbo can reach 1.92GHz
GPU Intel HD Graphics 400
RAM/ROM 4GB/64GB
LCD 10.1 inch; 1200×1920; 450nits
Touch Screen 10 Point Touch
Stylus Support; Wet Hand Touch Support
Camera Front: 2MP; Rear: 5MP
Power and Battery Main battery: 12000mAh / 3.8Vdc (45.6Wh)
Secondary battery: 2550mAh
WWAN TDD_LTE: B40; FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28
WCDMA: B1/B2/B4/B5/B8; GSM: B2/B3/B5/B8
Module: SLM770A (EC25-AUX in North America)
GPS BDS, GPS, GLONASS
WIFI 802.11a/b/g/n/ac Wireless Internet; Wireless AP (Mobile AP); 2.4G, 5G
Module: Intel Stone Peak 3165 (WiFi/Bluetooth 2-in-1)
BLUETOOTH 4.2 Version
NFC 13.56 MHz, Distance: 1-3cm; ISO14443 TYPE A
MIC Sensitivity: -32±2d; Output Impedance: 2.2kΩx1
SPEAKER 8Ω 1.5 Watt
Sensor Light sensor, Acceleration sensor, G-sensor
Size 268.9×176.8×18mm
Weight 1140±50g
Language Multi language

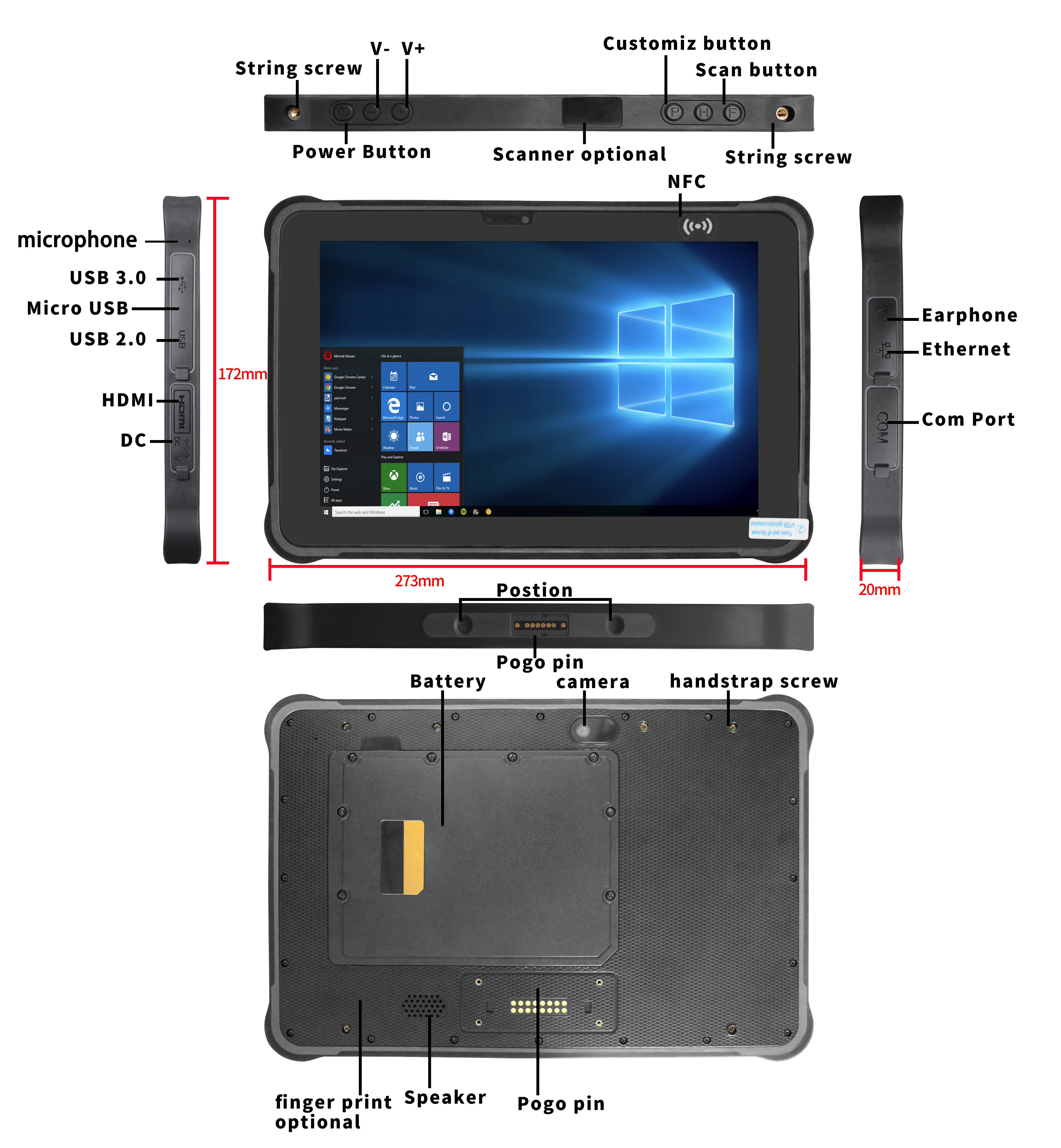

Interface In/Out Port USB-A: USB 3.0*1+USB 2.0*1; DC*1 (3.5×12mm); HDMI*1; Earphone*1; RJ45*1; RS232*1; SIM Card Slot*1; TF Card Slot*1
Bottom pogopin: USB 2.0; Charging; RS232
Back pogopin: USB 2.0; RS232
Button V+ -, Power, "F" for Barcode Scan
P, H (default no function)
1D/2D Barcode Optional: Honeywell N4680 Optional
UHF RFID M-500 Optional
American standard M-500 (902Mhz – 928Mhz): External (3-5M)
European standard M-500 (865MHz – 868MHz): External (3-5M)
M-301 Optional
American standard M-301 (902Mhz – 928Mhz): External (5-8M)
European standard M-301 (865MHz – 868MHz): External (5-8M)
Fingerprint Optional: AFM60 Optional
High Precision GPS Optional: UM960 Optional
Accessories Blue Box; DC Charger (5V 3A); Carry strap; Screw; Wrist strap; Screwdriver
Optional: Docking Station; Car Holder STA15; Car Holder STA03; Magnetic Keyboard
Multi-Media (Hardware Decoding) Photo Viewer: BMP, JPG, GIF, PNG
Video Format: MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (UP TO 1080P)
Audio Format: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (need license)
Proof Degree IP65 Anti-dust & Waterproof, 1.2m Dropping Resistance
Certification MIL-STD-810G; CE, FCC, 3C
Temperature Storage Temperature: -40°C to 60°C; Operation Temperature: -20°C to 55°C

Application Scenarios

🔧
Windows IoT Applications
🔋
Long-Endurance Field Work
📦
Entry-Level Industrial Logistics
🏭
Basic Industrial Automation
