Product

ST11-U

$0

Windows ecosystem flagship rugged tablet: Win11 + Intel deca-core power runs pro software smoothly. 10.1-inch HD screen delivers great visuals, long battery lasts all day. 4G/WiFi connects fast; IP54 protection + drop resistance fits tough scenes. Internal cooling fan boosts stability, customizable—ideal for logistics/finance pro work.

  • Buy Now
  • Add to shopping cart
In Stock:

Product Overview

The ST11-U is a 10.1-inch rugged tablet powered by Intel 12th Gen Core processors (I5-1235U/I7-1255U optional), running Windows 11 Pro system with TPM2.0 support. It features up to 64GB LPDDR5 RAM and 512GB M.2 storage, 10.1-inch 1200×1920 display (450nits), 5MP/8MP cameras, 6000mAh 7.6V battery with Type-C 65W fast charging, 4G LTE connectivity (SLM770A module), WiFi 6 AX201, Bluetooth 5.2 and NFC. With IP54 protection, 1.2m drop resistance and optional UHF RFID/fingerprint/High Precision GPS, it's designed for Windows-based industrial and enterprise applications.

Key Features

  • Windows 11 Pro with TPM2.0 support, Intel 12th Gen Core I5-1235U/I7-1255U processors (10 cores/12 threads)
  • Intel Iris Xe Graphics (80EU/96EU), up to 64GB LPDDR5 RAM and 512GB M.2 SATA storage
  • 10.1-inch 1200×1920 display (450nits), 10-point touch with stylus & wet hand support
  • 6000mAh 7.6V battery (45.6Wh) with 2.5-hour fast charging, 5.5-hour video playback and 6-day standby
  • 4G LTE multi-band connectivity (SLM770A module), WiFi 6 AX201, Bluetooth 5.2 and NFC 13.56MHz
  • Rich interfaces: HDMI, dual USB3.2 Gen1, Type-C (PD/DP/Data/Charging), Gigabit RJ45, RS232
  • IP54 dust/waterproof, 1.2m drop resistance, MIL-STD-810G certification, optional UHF RFID/fingerprint/UM960 GPS
  • Enterprise-grade security with TPM2.0, Intel vPro-ready performance for business applications

Technical Specifications (ST11-U)

OS Windows 11 Pro
CPU Intel I5-1235U (10 cores, 12 threads; 1.3GHz/4.4GHz, 15W)
I7-1255U Optional (10 cores, 12 threads; 1.7GHz/4.7GHz, 15W)
GPU Intel® Iris® Xe Graphics 80EU
I7: Intel® Iris® Xe Graphics 96EU
TPM Support TPM2.0
RAM/ROM I5：RAM 8GB/16GB (Max 64GB); ROM 128GB/256GB/512GB
I7：RAM 16GB/32GB (Max 64GB); ROM 128GB/256GB/512GB
RAM: LPDDR5 496 Ball; ROM: M.2 2242 SATA (C500)
LCD 10.1 inch; 1200×1920; 450nits
Touch Screen 10 Point Touch
Stylus Support; Wet Hand Touch Support
Camera Front: 5MP; Rear: 8MP
Power 6000mAh, 7.6V lithium battery (45.6Wh)
Charging time: 2H30min; Usage time: 5H30min (50% volume, 60% brightness, local 1080P video); Standby: ~6 days
DC4.0, 12V DC input; Supports Type-C 65W fast charging
WWAN FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28; TDD_LTE: B40; WCDMA: B1/B2/B4/B5/B8; GSM: B2/B3/B5/B8
Module: SLM770A (EC25-AUX in North America)
GPS BDS, GPS, GLONASS
WIFI 802.11a/b/g/n/ac/ax Wireless Internet; Wireless AP (Mobile AP); 2.4G, 5G
Intel® Wi-Fi 6 AX201 (WiFi/Bluetooth 2-in-1)
BLUETOOTH 5.2 Version
NFC 13.56 MHz, Distance: 1-3cm; ISO14443 TYPE A
MIC Sensitivity: -32±2d; Output Impedance: 2.2kΩx1
SPEAKER 8Ω 1.5 Watt
Sensor Light Sensor, Acceleration Sensor, G-Sensor
Size 268.9×176.8×18mm
Weight 1190±50g
Language Multi language

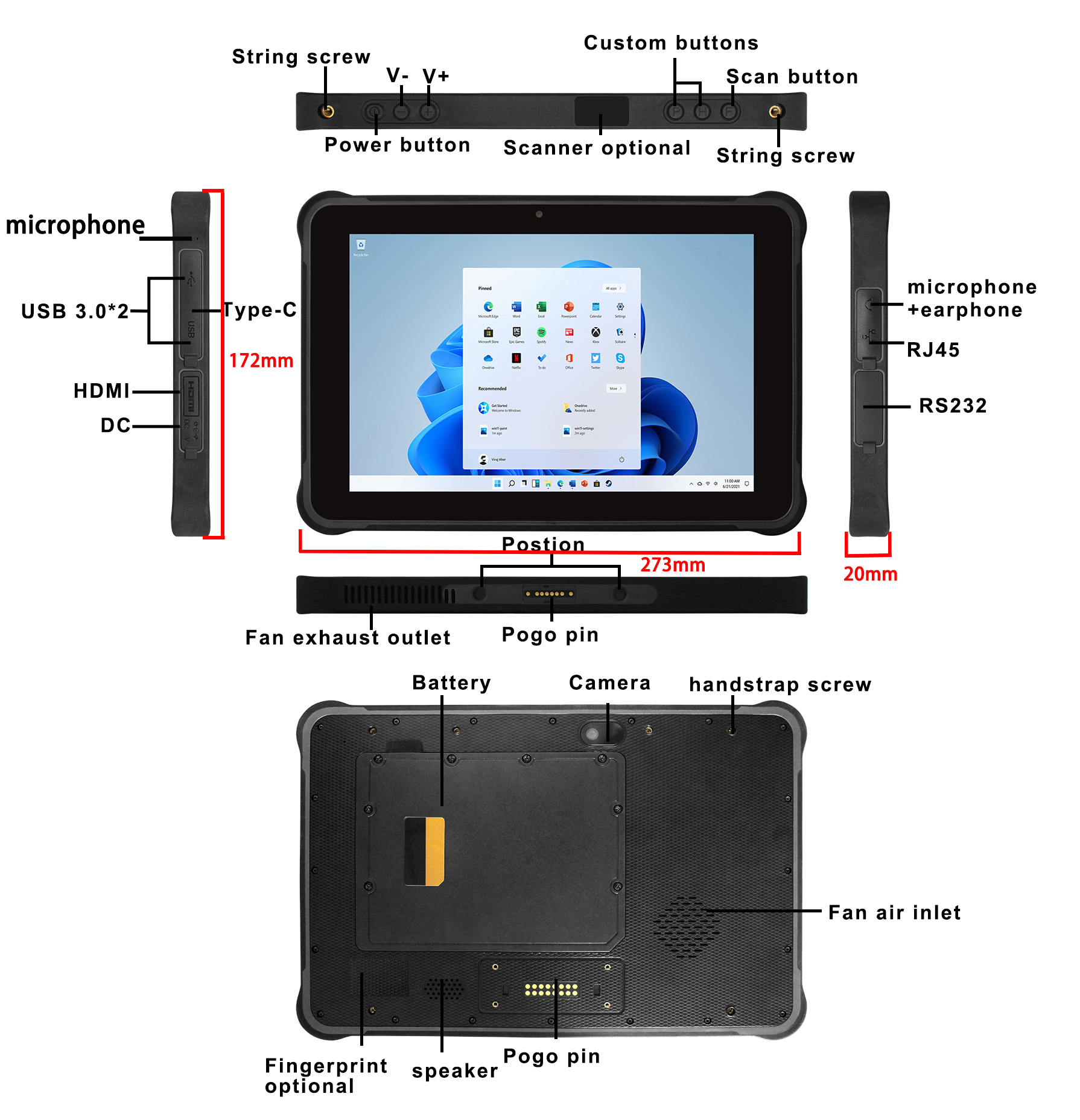

Interface In/Out Port DC*1 (4.0×15mm); HDMI Type A x1; USB Type_A: USB3.2 Gen1 x2; USB Type_C: USB3.2 Gen1 x1 (PD/DP/Data/Charging); Earphone: ∮3.5mm x1; RJ45 (Gigabit); RS232 (DB9)
Bottom pogopin: USB 2.0; Charging; RS232
Back pogopin: USB 2.0; RS232
Button V+ -, Power, "F" for Barcode Scan
Customized Button: P, H (Default No Functionality)
1D/2D Barcode Optional: Honeywell N4680 Optional
UHF RFID M-500 Optional
American standard M-500 (902Mhz – 928Mhz): External (3-5M)
European standard M-500 (865MHz – 868MHz): External (3-5M)
M-301 Optional
American standard M-301 (902Mhz – 928Mhz): External (5-8M)
European standard M-301 (865MHz – 868MHz): External (5-8M)
Fingerprint Optional: AFM60 Optional
High Precision GPS Optional: UM960
Accessories Blue Box; DC Charger (12V 4A); Carry strap; Screw; Wrist strap; Screwdriver
Optional: Docking Station; Car Holder STA15; Car Holder STA03
Multi-Media (Hardware Decoding) Photo Viewer: BMP, JPG, GIF, PNG
Video Format: MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (UP TO 1080P)
Audio Format: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (need license)
Proof Degree IP54 Anti-dust & Waterproof, 1.2m Dropping Resistance
Certification MIL-STD-810G; CE, FCC, 3C
Temperature Storage Temperature: -40°C to 60°C; Operation Temperature: -20°C to 55°C

Application Scenarios

🖥️
Windows Enterprise Applications
🔒
TPM2.0 Secure Environments
📍
High Precision GPS Mapping
🏢
Corporate Industrial Workflows
