ST11-R2 Android 12

$0

Multi-industry flagship Android rugged tablet: Android 12 + powerful octa-core processor, 10.1-inch high-brightness screen + long battery life, stable 5G/WiFi 6 connectivity, IP65 protection + drop resistance for complex environments, customized modules for logistics, finance and other scenarios, high performance and durability, the perfect partner for professional work!

  • Buy Now
  • Add to shopping cart
In Stock:

Product Overview

The ST11-R2A is a high-performance 10.1-inch rugged tablet powered by Rockchip RK3588 octa-core processor (4×[email protected] + 4×[email protected]), running Android 12 system. It features 8GB/256GB or 16GB/256GB storage (8GB/512GB, 16GB/512GB optional), 10.1-inch 1200×1920 IPS display (450nits, 1000nits optional), 5MP front/13MP rear cameras with flash light, 6000mAh 7.6V battery (43-day standby), 4G connectivity, WiFi 6, Bluetooth 5.0 and NFC. With rich interfaces including HDMI, USB 3.0, RJ45, RS232 and IP65 protection, it's ideal for demanding industrial applications requiring extended performance and connectivity.

Key Features

  • Android 12 system, Rockchip RK3588 octa-core processor (4×[email protected] + 4×[email protected])
  • ARM Mali G610 GPU, 10.1-inch 1200×1920 IPS display (450nits, 1000nits optional), 10-point touch with stylus support
  • 8GB/256GB or 16GB/256GB storage (8GB/512GB, 16GB/512GB optional), 6000mAh 7.6V battery with 43-day standby
  • 5MP front + 13MP rear cameras with flash light, comprehensive sensor suite including gyroscope and pressure sensor
  • 4G multi-band connectivity (SLM770A module), WiFi 6, Bluetooth 5.0 and NFC 13.56MHz
  • Rich interfaces: HDMI, USB 3.0, USB 2.0, RJ45, RS232, Type-C (OTG), dual pogopin connectors
  • IP65 dust/waterproof, 1.2m drop resistance, MIL-STD-810G certification, optional UHF RFID and barcode scanner
  • Optional Type-C 65W fast charging charger, magnetic keyboard and dedicated vehicle holders

Technical Specifications (ST11-R2A)

OS Android 12
CPU Rockchip RK3588 (Octa Core; 2.4GHz)
Cortex-A76×4 @2.4GHz, Cortex-A55×4 @1.8GHz
GPU ARM Mali G610
RAM/ROM 8GB/256GB，16GB/256GB
8GB/512GB, 16GB/512GB Optional
LCD 10.1 inch; 1200×1920; 450nits
IPS Screen; 1000nits(1200×1920) Optional
Touch Screen 10 Point Touch
Stylus Support; Wet Hand Touch Support
Camera Front: 5MP; Rear: 13MP (Flash light)
Power and Battery 6000mAh / 7.6Vdc (45.6Wh)
Charging time: about 4 hours
Usage time: 8H30min (50% volume, 60% brightness, playing local 1080P video)
Standby time: about 43 days (screen off standby)
WWAN FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66
TDD_LTE: B40
WCDMA: B1/B2/B4/B5/B8
GSM: 850/900/1800/1900
Module: SLM770A
GPS BDS, GPS, GLONASS
WIFI 802.11a/b/g/n/ac/ax Wireless Internet; Wireless AP (Mobile AP); 2.4G, 5G; Support WiFi6
WiFi/Bluetooth 2-in-1
BLUETOOTH 5.0 Version
NFC 13.56 MHz, Distance: 1-3cm; ISO/IEC 14443A/B; ISO/IEC 15693
MIC Sensitivity: -32±2d; Output Impedance: 2.2kΩx1
SPEAKER 8Ω 1.5 Watt
Sensor Light sensor, Magnetic sensor, Pressure sensor, G-sensor, Distance sensor, Acceleration sensor, Gyroscope, Motor
Size 268.9×176.8×18mm
Weight 1150±50g
Language Multi language

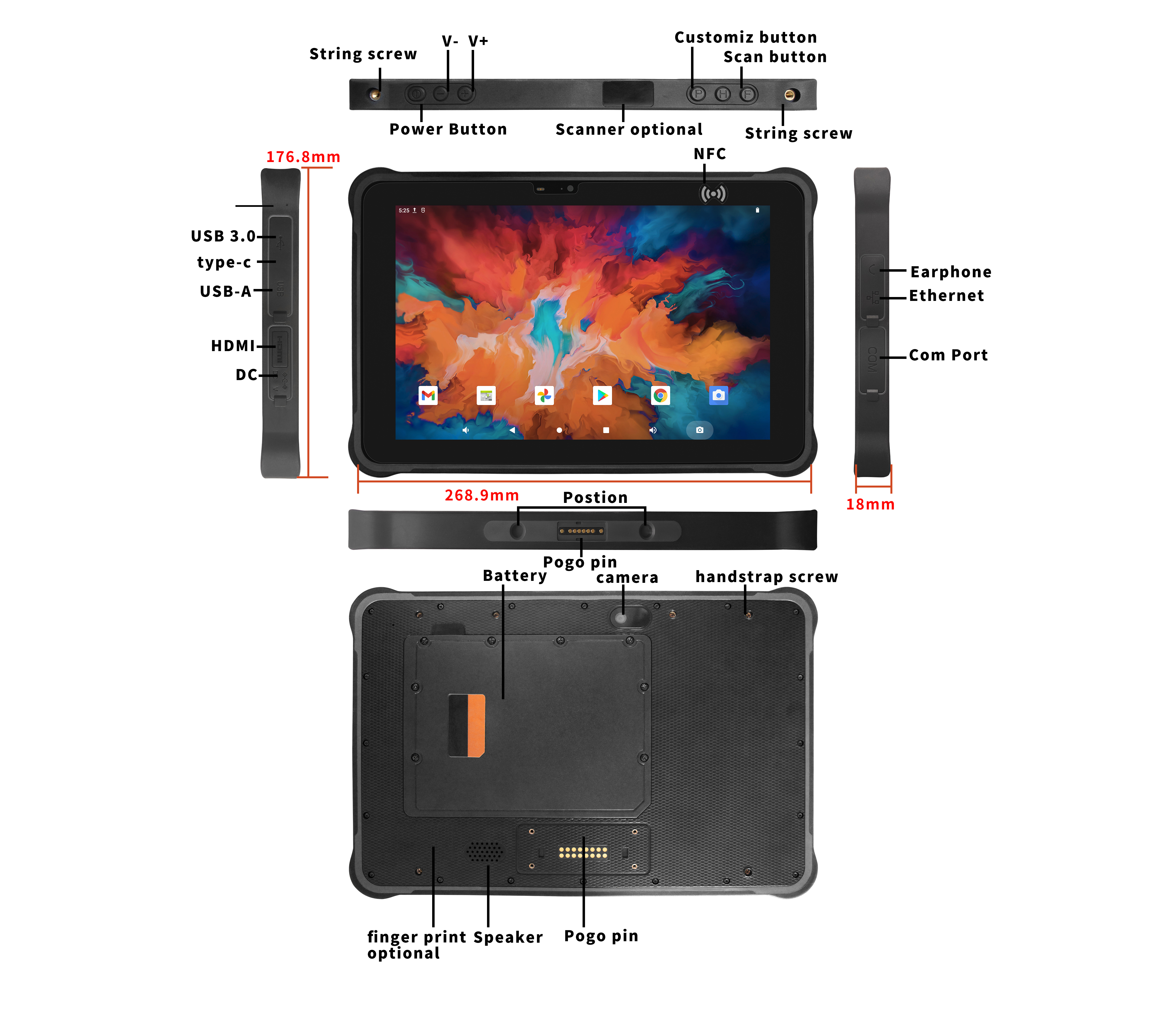

Interface In/Out Port Type-C *1 (OTG); SIM Card Slot*1; TF Card Slot*1; Earphone*1; DC*1 (4.0×15mm); USB-A：USB 2.0 *1+USB 3.0 *1; RJ45*1; RS232*1; HDMI*1
Bottom pogopin: USB 2.0; Charging; RS232
Back pogopin: USB 2.0; RS232
Button V+ -, Power, "F" for Barcode Scan
Customized Button: P,H (Default No Functionality)
1D/2D Barcode Optional: Honeywell N4680 Optional
UHF RFID M-500 Optional
American standard M-500 (902Mhz – 928Mhz): External (3-5M)
European standard M-500 (865MHz – 868MHz): External (3-5M)
M-301 Optional
American standard M-301 (902Mhz – 928Mhz): External (5-8M)
European standard M-301 (865MHz – 868MHz): External (5-8M)
Fingerprint Optional: AFM60 Optional
Accessories Blue Box; DC Charger (12V 4A); Carry strap; Screw; Wrist strap; Screwdriver
Optional: Docking Station; Car Holder STA15; Car Holder STA03; Type-C 65W fast charging charger; Magnetic Keyboard
Multi-Media (Hardware Decoding) Photo Viewer: BMP, JPG, GIF, PNG
Video Format: MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (UP TO 1080P)
Audio Format: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (need license)
Proof Degree IP65 Anti-dust & Waterproof, 1.2m Dropping Resistance
Certification MIL-STD-810G; CE, FCC, 3C
Temperature Storage Temperature: -40°C to 60°C; Operation Temperature: -20°C to 55°C

Application Scenarios

⚡
High-Performance Industrial Control
🔋
Long-Term Field Deployments
📺
HDMI-Enabled Display Applications
🚗
Vehicle-Mounted Industrial Systems
