SP15-U

$0

High-performance Windows 10/11 waterproof industrial PC: Intel i5 deca-core + flexible large storage, 15.6-inch HD clear display, stable WiFi/Bluetooth. IP65 waterproof + wide temperature adaptability (handles logistics/industrial harsh environments). Multi-language support — reliable for efficient cross-industry operation.

  • Buy Now
  • Add to shopping cart
In Stock:

Product Overview

The SP15-U is a high-performance 15.6-inch rugged industrial tablet running Windows 11 Pro (Windows 10 Pro/IoT optional), powered by Intel I5-1235U (10 cores/12 threads, 1.3GHz/4.4GHz turbo) or optional I7-1255U (10 cores/12 threads, 1.7GHz/4.7GHz turbo) processors. It features Intel® Iris® Xe Graphics (80EU/96EU for I7), scalable LPDDR5 memory (up to 64GB) and M.2 storage (128GB-512GB), 15.6-inch 1080×1920 display with 10-point touch (stylus support), Intel® Wi-Fi 6 AX201 module (Bluetooth 5.2), and comprehensive I/O including USB Type-C (PD/DP/Data). With IP65 dust/waterproof, 1.2m drop resistance, and robust design (384×234×22.5mm/2600g), it's optimized for next-gen industrial-grade Windows workstation applications.

Key Features

  • Windows 11 Pro (10 Pro/IoT optional), Intel I5-1235U/I7-1255U 10-core processors (15W TDP) with up to 4.7GHz turbo
  • Intel® Iris® Xe Graphics (80EU/96EU), LPDDR5 memory up to 64GB, M.2 2242 SATA storage (128GB/256GB/512GB)
  • 15.6-inch 1080×1920 display, 10-point touch with stylus support for precise industrial operation
  • Intel® Wi-Fi 6 AX201 (Bluetooth 5.2), Gigabit RJ45 Ethernet for high-speed dual-network connectivity
  • Rich I/O: USB Type-C (PD/DP/Data), dual USB 3.2 Gen1, HDMI, RS232, dual DC 12V 3A power
  • IP65 dust/waterproof, 1.2m drop resistance, wide temperature operation (-20°C to 55°C)
  • Dual 4Ω 2.0W speakers for clear audio in noisy industrial environments
  • Compact robust design (384×234×22.5mm/2600g) with internal/external antenna options

Technical Specifications (SP15-U)

OS Windows 11 Pro
Windows 10 Pro / IoT Optional
CPU Intel I5-1235U (10 cores, 12 threads; 1.3GHz, turbo 4.4GHz; 15W)
I7-1255U optional (10 cores, 12 threads; 1.7GHz, turbo 4.7GHz; 15W)
GPU Intel® Iris® Xe Graphics 80EU
I7: Intel® Iris® Xe Graphics 96EU
RAM/ROM I5: RAM 8GB/16GB (max 64GB); ROM 128GB/256GB/512GB
I7: RAM 16GB/32GB (max 64GB); ROM 128GB/256GB/512GB
RAM: LPDDR5 496 Ball; ROM: M.2 2242 SATA
LCD 15.6 inch; 1080×1920
Touch Screen 10 Point Touch
Support stylus
WIFI 802.11b/g/n/ac/ax (WiFi 6); Wireless AP (2.4G, 5G)
Model: Intel® Wi-Fi 6 AX201 (Bluetooth/WiFi 2-in-1)
Antenna built-in or external Optional
BLUETOOTH Version 5.2, backward compatibility
SPEAKER 4Ω 2.0Watt*2

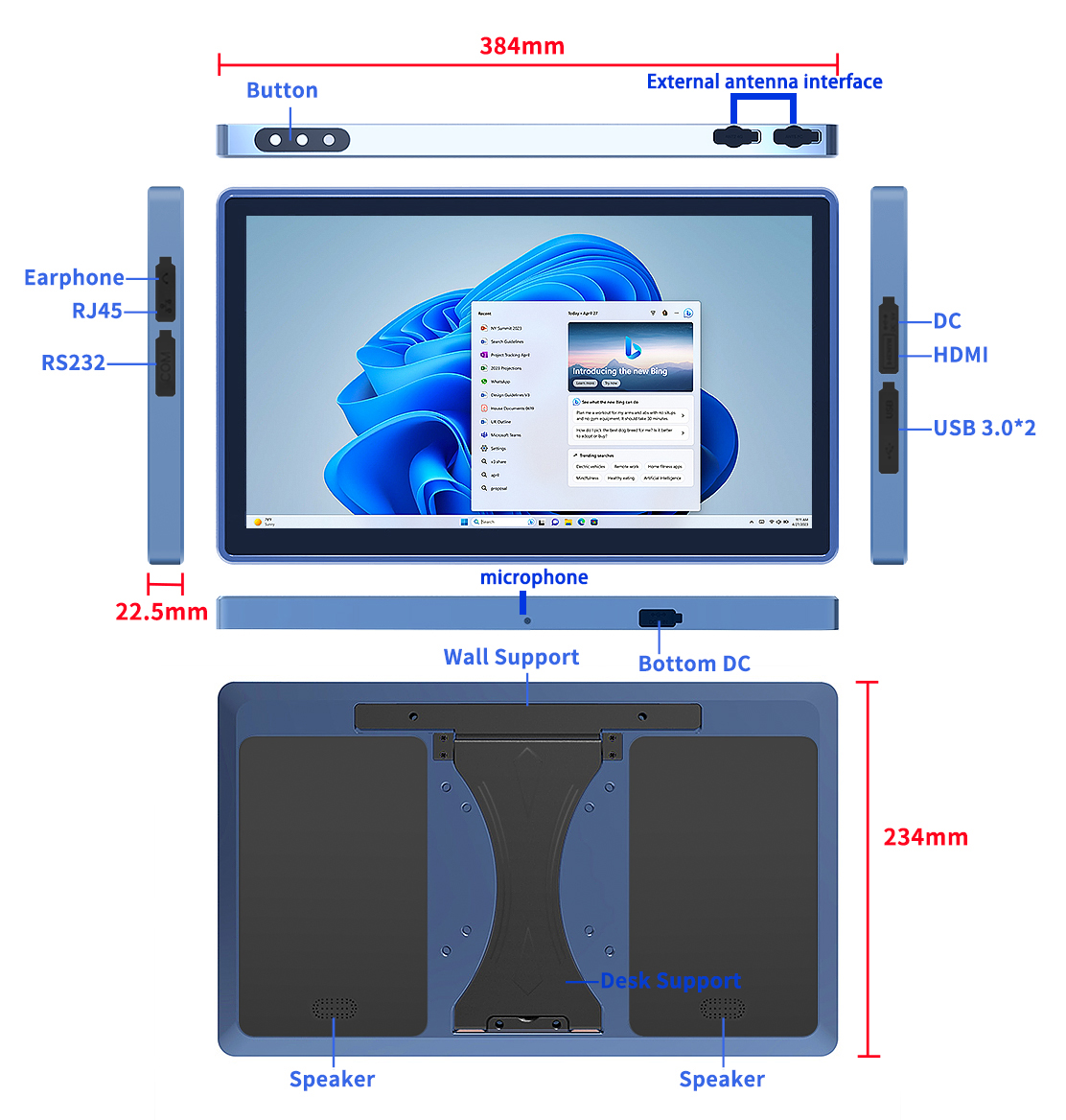

Size 384×234×22.5mm
Weight 2600±50g (without antenna)
Language Multi language
Interface In/Out Port DC 12V 3A ∮4.0mm x2; HDMI Type A x1; USB Type_A 3.2 Gen1 x2
USB Type_C 3.2 Gen1 x1 (PD, DP, Data, Charging); Earphone ∮3.5mm x1
RJ45 (Gigabit Ethernet); RS232 (Standard DB9)
Button V+ -, Power
Accessories Box; DC Charger (12V 4A)
Multi-Media (Hardware Decoding) Photo Viewer: BMP, JPG, GIF, PNG
Video Format: MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (UP TO 1080P)
Audio Format: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (need license)
Proof Degree IP65 Anti-dust & Waterproof, 1.2m Dropping Resistance
Temperature Storage Temperature: -40°C to 60°C; Operation Temperature: -20°C to 55°C

Application Scenarios

🏭
Next-Gen Industrial Control
🤖
Smart Manufacturing HMI
📊
Industrial AI Analytics
🛠️
Professional Field Engineering
