Product

SM5

$0

SM5: Cost-effective Android 11 industrial rugged handheld terminal.MediaTek octa-core, 5.7-inch screen, 4000mAh battery.Scanning/NFC/BeiDou/GPS, 4G/WiFi/Bluetooth supported.IP65 protection, 1.5m drop-proof, -25℃~50℃ operating range.Expandable storage, budget-friendly—ideal for logistics/pharmaceutical/warehousing.

  • Buy Now
  • Add to shopping cart
In Stock:

Product Overview

The SM5 is a 5.7-inch rugged handheld terminal running Android 11.0, powered by MTK MT6765 octa-core processor (2.3GHz, 4x Cortex-A53 @1.8GHz + 4x Cortex-A53 @2.3GHz) with IMG PowerVR GE8320 GPU. It features scalable storage (4GB/64GB, 6GB/128GB optional), 5.7-inch 720×1520 display (450nits), 5MP front/13MP rear cameras with flash, 4000mAh 3.8V battery (14-hour video playback), 4G LTE global connectivity, and dual microphones with noise reduction. With IP68 dust/waterproof, 1.5m drop resistance, 8-in-1 sensor suite, and compact design (155×77.7×13.3mm/240g), it's optimized for long-endurance Android mobile data collection in harsh environments.

Key Features

  • Android 11.0 system, MTK MT6765 octa-core processor (2.3GHz, 4+4 Cortex-A53 cores) with IMG PowerVR GE8320 GPU
  • Scalable storage configurations (4GB/64GB, 6GB/128GB optional) for flexible Android application support
  • 5.7-inch 720×1520 display (450nits), 10-point touch with stylus support for precise input
  • 13MP rear camera with flash, dual microphones (main + noise reduction) for clear communication
  • 4000mAh battery with 2.5-hour fast charging, 14-hour video playback endurance
  • 4G LTE multi-band connectivity, dual SIM support (single standby), WiFi 5 and Bluetooth 5.0
  • Multiple barcode scan options (NLS-N1, M1, SE2707) for versatile data capture needs
  • IP68 dust/waterproof, 1.5m drop resistance, 8-in-1 sensor suite for harsh environment adaptability

Technical Specifications (SM5)

OS Android 11.0
CPU MTK MT6765 Octa Core; 2.3GHz
4x Cortex-A53 @1.8GHz + 4x Cortex-A53 @2.3GHz
GPU IMG PowerVR GE8320
RAM/ROM 4GB/64GB
6GB/128GB Optional
LCD 5.7 inch; 720×1520; 450nits
Touch Screen 10 Point Touch
Support stylus
Camera Front: 5MP; Rear: 13MP
Flash light
Power and Battery 4000mAh; 3.8V
Charging time: 2H30min
Usage time: about 14H (50% volume, 60% brightness, playing local 1080P video)
WWAN 4G LTE, 3G WCDMA, GSM
4G Fre: FDD-LTE B1/B2/B3/B4/B5/B7/B8/B20; TDD-LTE B38/B39/B40/B41
WCDMA B1/B2/B5/B8; GSM B2/B3/B5/B8
GPS BDS, GPS, GLONASS
WIFI 802.11a/b/g/n/ac Wireless Internet; Wireless AP (Mobile AP); 2.4G, 5G
BLUETOOTH 5.0 Version
MIC Sensitivity: -32±2d; Output Impedance: 2.2kΩx1
Dual microphones: main microphone for sound pickup, secondary microphone for noise reduction
SPEAKER 8Ω 1.0 Watt
NFC 13.56 MHz
Model: PN553
Sensor Light sensor, Magnetic sensor, Pressure sensor, G-sensor, Distance sensor, Acceleration sensor, Gyroscope, Motor

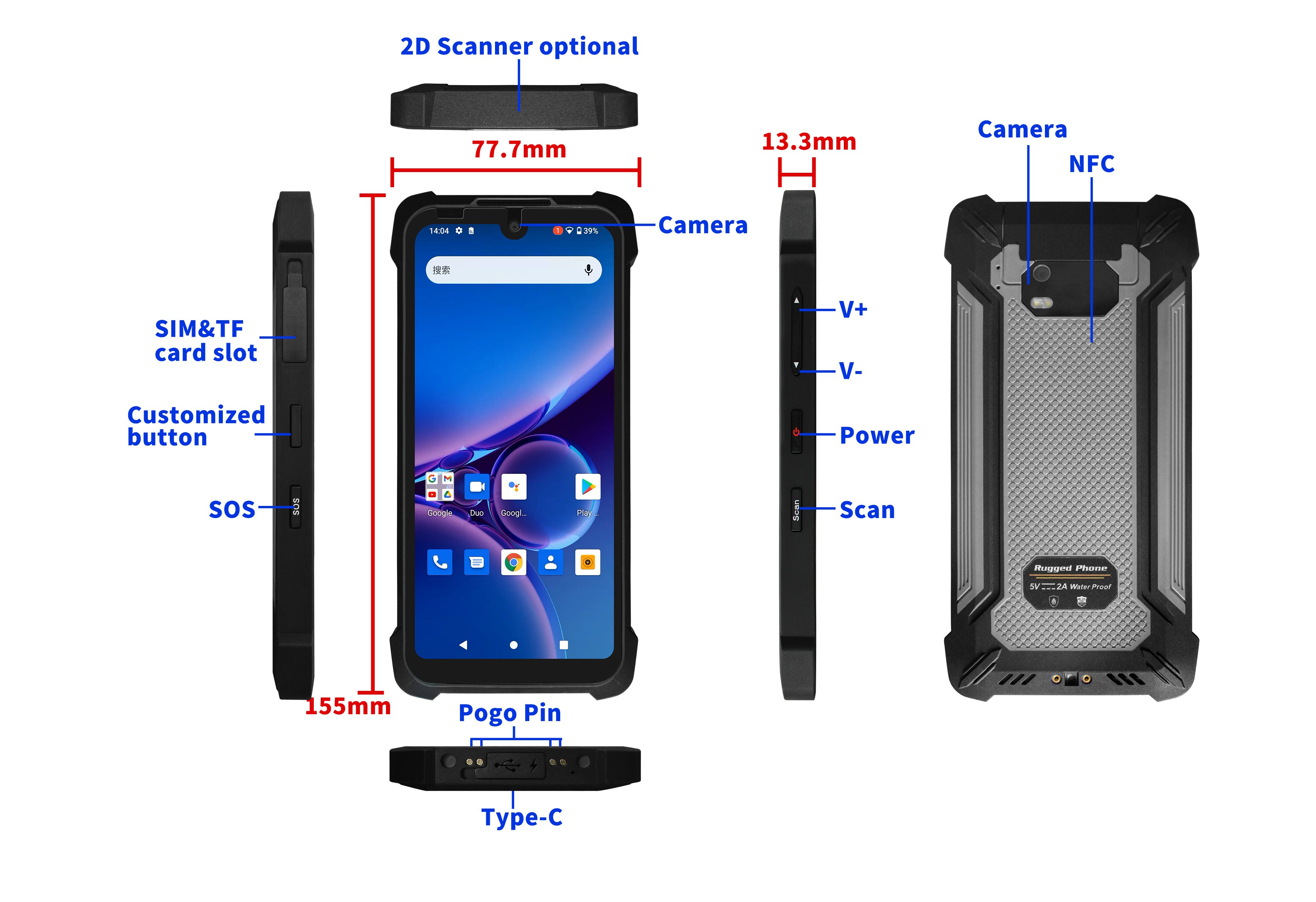

Size 155×77.7×13.3mm
Weight 240±20g
Language Multi language
Interface In/Out Port Type-C *1 (OTG); SIM+TF Card or SIM Card Slot*2 (Dual card single standby)
Bottom pogopin*4
Button V+ -, Power, SOS, Scan, Customized Button
1D/2D Barcode Optional: NLS-N1 Optional, M1 Optional, SE2707 Optional
Accessories Box; Charger (5V 2A); Thimble; Wrist rope
Multi-Media (Hardware Decoding) Photo Viewer: BMP, JPG, GIF, PNG
Video Format: MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (UP TO 1080P)
Audio Format: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (need license)
Proof Degree IP68 Anti-dust & Waterproof, 1.5m Dropping Resistance
Certification UN38.3, MSDS, CE
Temperature Storage Temperature: -40°C to 60°C; Operation Temperature: -20°C to 55°C

Application Scenarios

🔋
Long-Endurance Field Work
🏭
Industrial Data Collection
🚛
Logistics & Transportation
🌾
Agricultural Monitoring
