Product

SH6

$0

Rugged Windows 11 handheld terminal for industrial use.Intel N100 processor, 6.5-inch screen, 5000mAh long battery.Integrates 2D scanning, NFC, Beidou/GPS.IP65 protection, 1.2m drop-proof, -20C~55C operation.Full connectivity, industrial software compatibility, flexible expansion.Ideal for logistics, warehousing and field operations.

  • Buy Now
  • Add to shopping cart
In Stock:

Product Overview

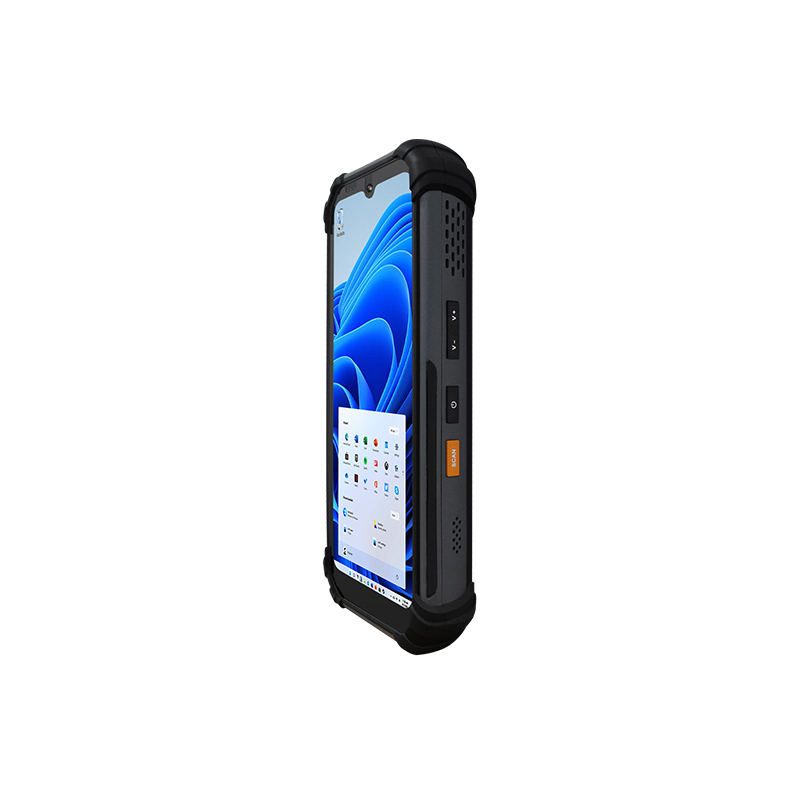

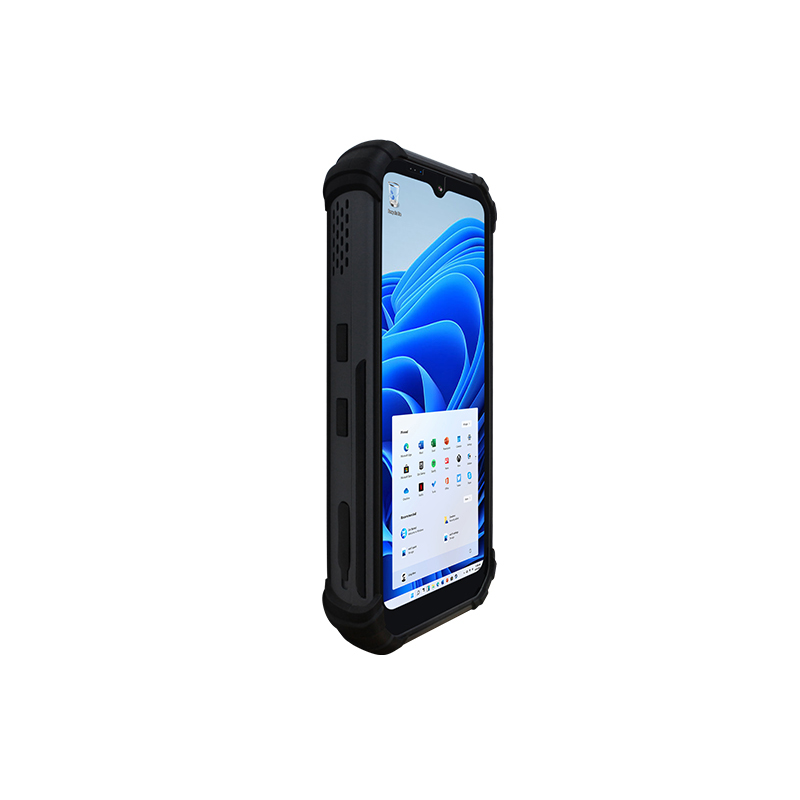

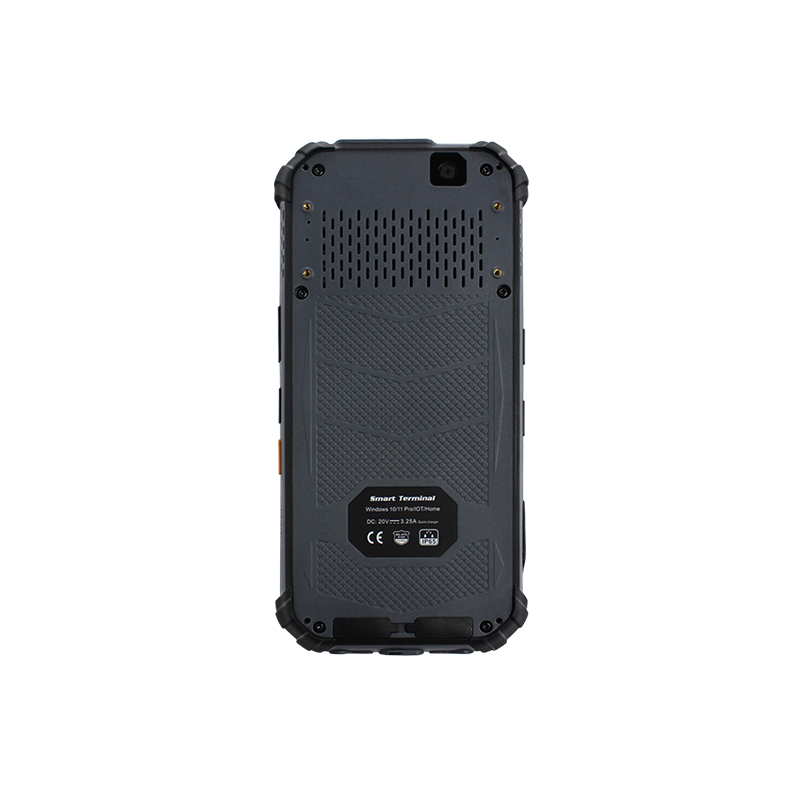

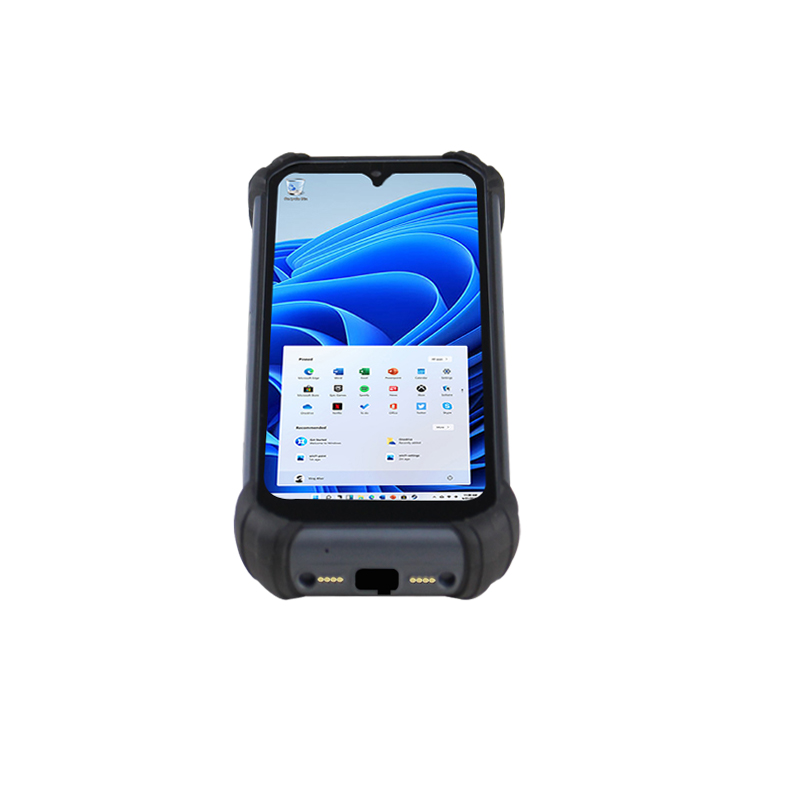

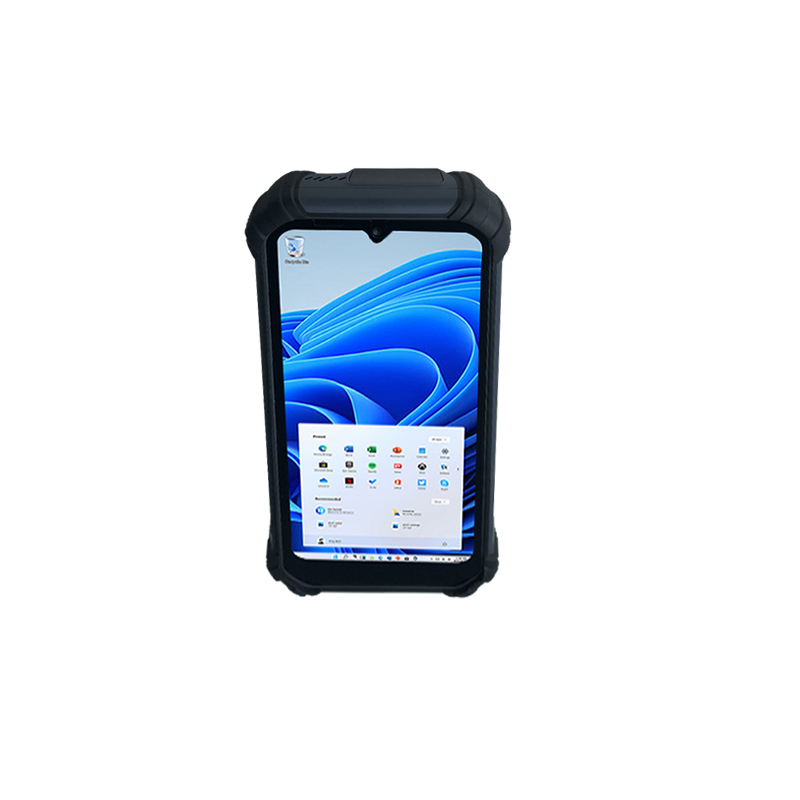

The SH6 is a 6.5-inch rugged handheld terminal powered by Intel N100 quad-core processor (1.8GHz, turbo up to 3.4GHz), running Windows 11 Pro (Home/IoT optional). It features scalable storage (8GB/256GB, 8GB/512GB, 16GB/256GB, 16GB/512GB optional), 6.5-inch 720×1600 display (380nits), 5MP front/8MP rear cameras, 5000mAh 7.6V battery, 4G LTE connectivity (SLM770A/EC25-AUX for NA), Intel® WiFi 6 AX201 and Bluetooth 5.2. With IP65 dust/waterproof, 1.2m drop resistance, dual USB 3.0, full-featured Type-C (20W fast charge) and multiple barcode scan options, it's designed for next-gen Windows 11 portable industrial data collection and mobile workflows.

Key Features

  • Windows 11 Pro/Home/IoT optional, Intel N100 (Quad Core, 1.8GHz/3.4GHz turbo) with UHD Graphics 24 EUs
  • Flexible storage options (8GB/256GB to 16GB/512GB) for enhanced Windows 11 performance
  • 6.5-inch 720×1600 display (380nits), 10-point touch for intuitive mobile interaction
  • 5000mAh 7.6V battery, 3-hour fast charging, 4.5-hour video playback endurance
  • 4G LTE global connectivity (SLM770A/EC25-AUX), Intel WiFi 6 AX201, Bluetooth 5.2 and NFC
  • Multiple barcode scan options (NLS-N1, Zebra SE5500/SE4710/SE655) for versatile data capture
  • IP65 dust/waterproof, 1.2m drop resistance, compact design (178.3×83×23mm/460g)
  • Dual USB 3.0, full-featured Type-C (20W fast charge), 8PIN pogopin for expansion

Technical Specifications (SH6)

OS Windows 11 Pro
Home / IoT Optional
CPU Intel N100 (Quad Core, Quad Threads; 1.8GHz)
Turbo can reach 3.4GHz
GPU UHD Graphics (24 EUs)
RAM/ROM 8GB/256GB
8GB/512GB Optional, 16GB/256GB Optional, 16GB/512GB Optional
LCD 6.5 inch; 720×1600; 380nits
Touch Screen 10 Point Touch
Camera Front: 5MP; Rear: 8MP
Power and Battery 5000mAh; 7.6V
Charging time: about 3H
Usage time: 4H30min (50% volume, 60% brightness, playing local 1080P video)
WWAN FDD_LTE: B1/B2/B3/B4/B5/B7/B8/B28; TDD_LTE: B40
WCDMA: B1/B2/B4/B5/B8; GSM: B2/B3/B5/B8
Module: SLM770A (EC25-AUX in North America)
GPS BDS, GPS, GLONASS
WIFI 802.11a/b/g/n/ac/ax Wireless Internet; Wireless AP (Mobile AP); 2.4G, 5G
Intel® Wi-Fi 6 AX201 (WiFi/Bluetooth 2-in-1)
BLUETOOTH 5.2 Version
NFC 13.56 MHz, Distance: 1-3cm; ISO14443 TYPE A
MIC Sensitivity: -32±2d; Output Impedance: 2.2kΩx1
SPEAKER 8Ω 1.0 Watt
Sensor Light Sensor, G-Sensor, Acceleration sensor

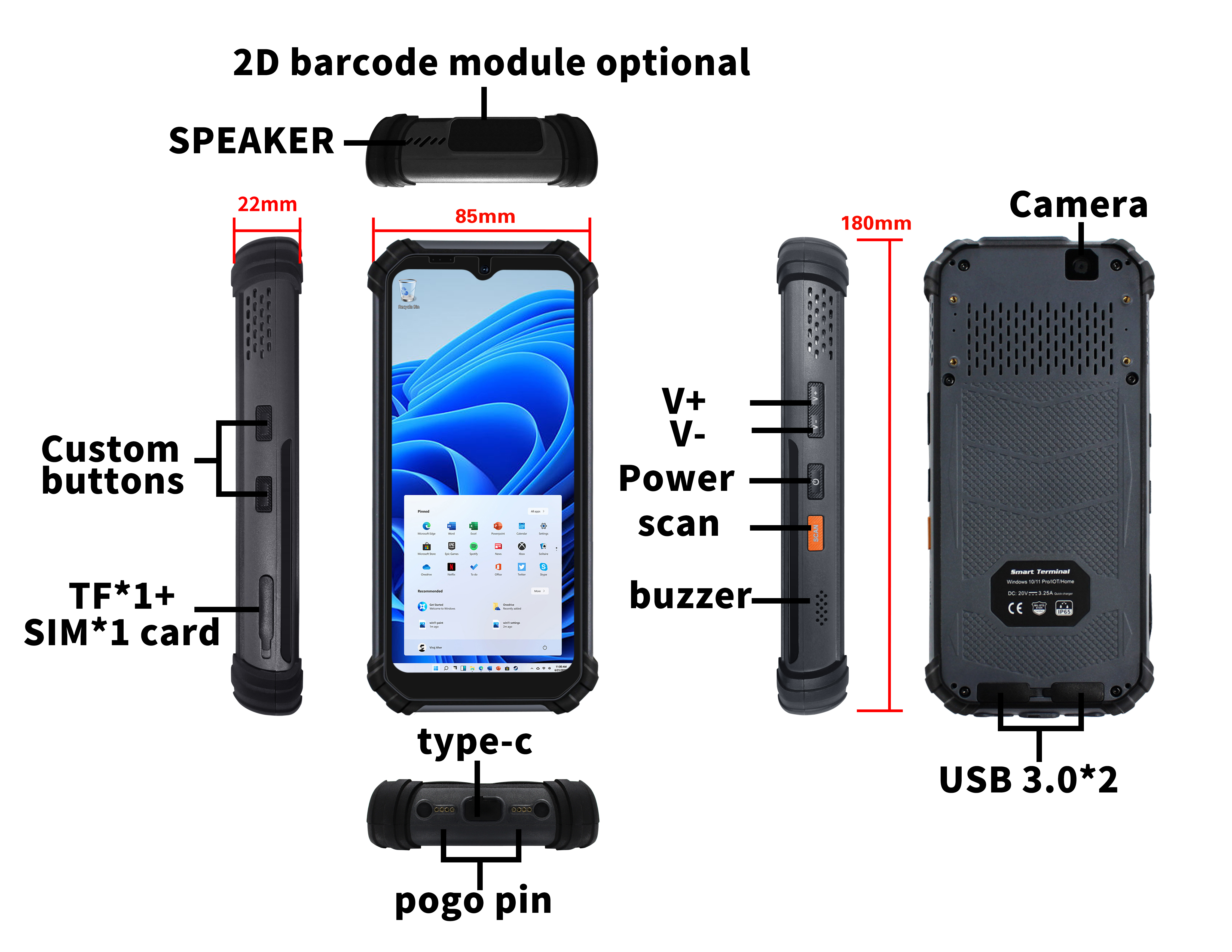

Size 178.3×83×23mm
Weight 460±20g
Language Multi language
Interface In/Out Port Type-C*1 (Full-featured; Quick charge 20W); SIM Card Slot*1; TF Card Slot*1; USB 3.0*2
Bottom pogopin (8PIN)
Button V+ -, Power, Scan
Customized Button *2
1D/2D Barcode Optional: NLS-N1 optional, Zebra SE5500 optional, Zebra SE4710 optional, SE655 (1D) Optional
Accessories Blue Box; Charger (20W); Hand Strap; Screws & Screwdriver
Optional: Docking Station
Multi-Media (Hardware Decoding) Photo Viewer: BMP, JPG, GIF, PNG
Video Format: MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (UP TO 1080P)
Audio Format: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (need license)
Proof Degree IP65 Anti-dust & Waterproof, 1.2m Dropping Resistance
Temperature Storage Temperature: -40°C to 60°C; Operation Temperature: -20°C to 55°C

Application Scenarios

📦
Smart Logistics Management
🏭
Industry 4.0 Data Collection
🛒
Modern Retail Operations
🔍
Mobile Barcode Scanning Tasks
