ST13-Q3

$0

A flagship rugged tablet running Android 13: equipped with a powerful Qualcomm 5G octa-core processor, a 13.3-inch HD screen, a 16000mAh battery for extended battery life, and efficient 4G/5G/WiFi 6 connectivity; IP65 protection and drop-resistant design adapt to complex scenarios, built-in cooling fan and large storage, supports customized modules, making it a powerful tool for professional operations in logistics, industry and other fields.

  • Buy Now
  • Add to shopping cart
In Stock:

Product Overview

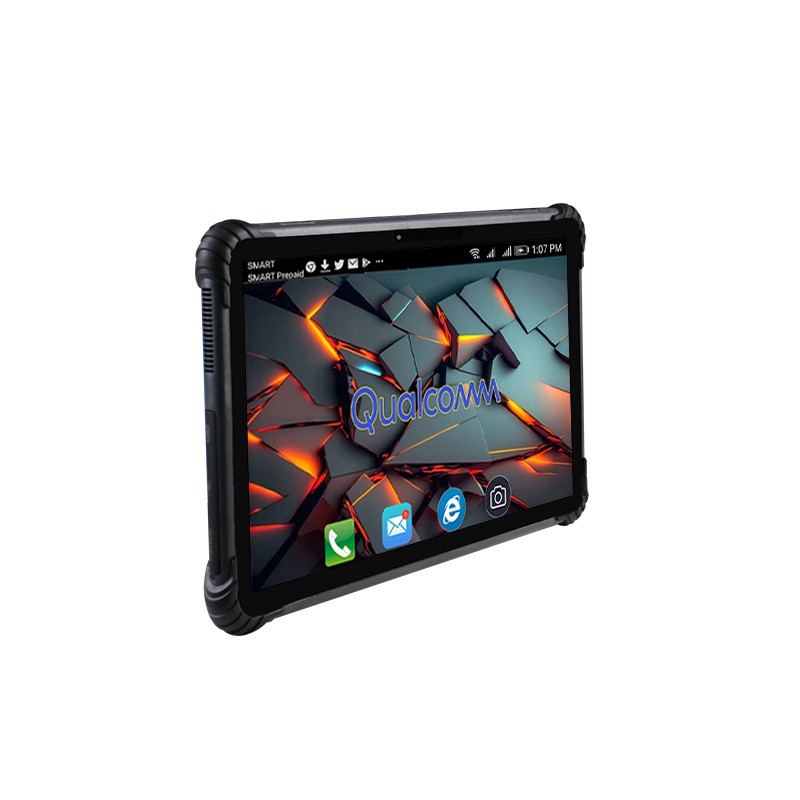

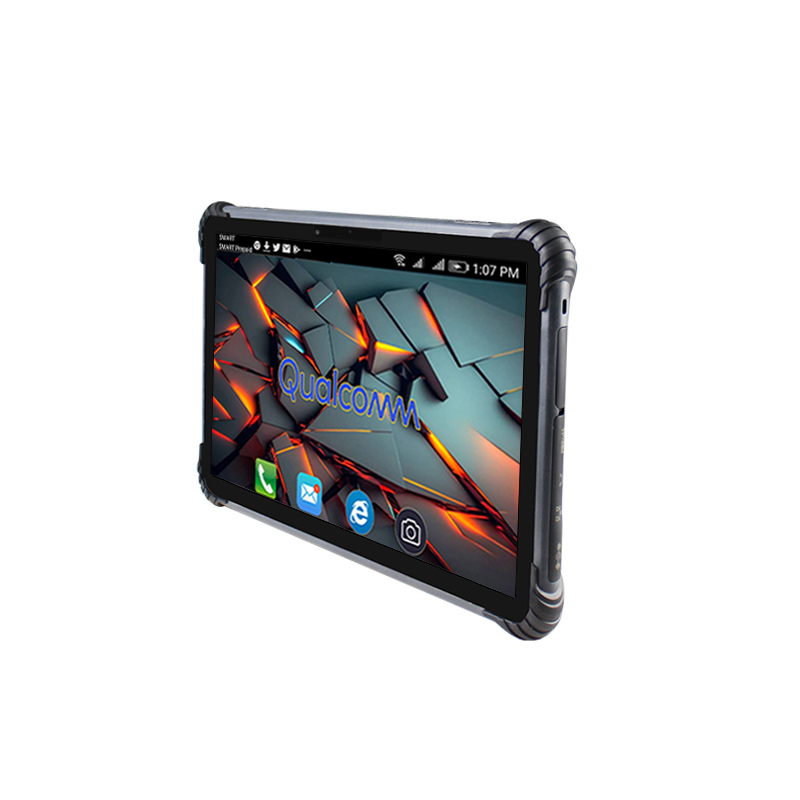

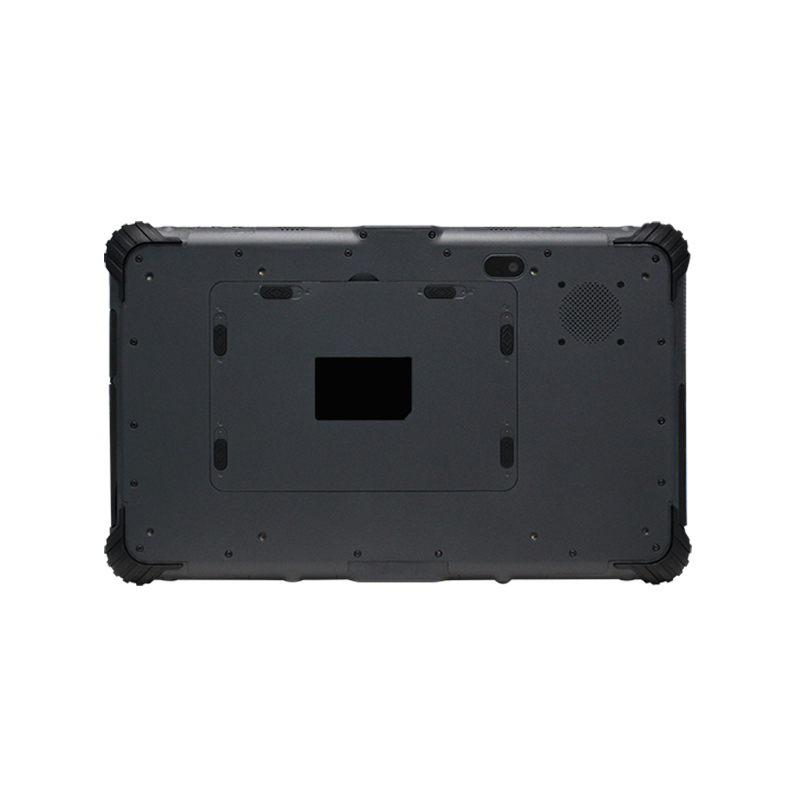

The ST13-Q3 is a 13.3-inch rugged tablet powered by Qualcomm 5G SOC QCM4490 octa-core processor (2×Kryo [email protected] + 6×Kryo [email protected]), running Android 13 system. It features 8GB/128GB storage (4GB/64GB/8GB/256GB optional), 13.3-inch 1080×1920 IPS display (400nits), 8MP front/16MP rear cameras with flash light, 16000mAh 3.8V battery (60.80Wh), 5G multi-band connectivity (SRM700 module), WiFi 6, Bluetooth 5.2 and multi-protocol NFC. With IP65 dust/waterproof, 1.2m drop resistance and comprehensive sensor suite, it's designed for 5G-enabled Android industrial applications requiring large-screen visualization and long endurance.

Key Features

  • Android 13 system, Qualcomm QCM4490 5G SOC (2×Kryo [email protected] + 6×Kryo [email protected])
  • Adreno GPU 613, flexible storage options (4GB/64GB/8GB/128GB/8GB/256GB)
  • 13.3-inch 1080×1920 IPS display (400nits), 10-point touch with stylus & wet hand support
  • 16000mAh 3.8V battery (60.80Wh) for extended operation, 5G multi-band connectivity (SRM700 module)
  • WiFi 6 (802.11ax), Bluetooth 5.2, multi-protocol NFC (ISO/IEC 14443A/B; ISO/IEC 15693)
  • Rich interfaces: USB-A 2.0, Type-C, RJ45 (10/100M), dual aviation interfaces, anti-theft lock hole
  • IP65 dust/waterproof, 1.2m drop resistance, 8-in-1 sensor suite for industrial environment adaptability
  • 13.3-inch large screen design (331.7×203.2×19.5mm) for enhanced 5G industrial visualization workflows

Technical Specifications (ST13-Q3)

OS Android 13
CPU Qualcomm 5G SOC QCM4490 (Octa Core; 2.4GHz)
Kryo Gold×2 @2.4GHz, Kryo Silver×6 @1.95GHz
GPU Adreno GPU 613
RAM/ROM 8GB/128GB
4GB/64GB Optional, 8GB/256GB Optional
LCD 13.3 inch; 1080×1920; 400nits; IPS Screen
Touch Screen 10 Point Touch
Stylus Support; Wet Hand Touch Support
Camera Front: 8MP; Rear: 16MP (Flash light)
Power and Battery 16000mAh / 3.8Vdc (60.80Wh)
WWAN 5G-FDD: N1/N3/N5/N7/N8/N20/N28
5G-TDD: N38/N40/N41/N77/N78/N79
LTE-FDD: B1/B3/B5/B7/B8/B20/B26/B28
LTE-TDD: B38/B40/B41
WCDMA: B1/B5/B8
Module: SRM700
GPS BDS, GPS, GLONASS, Galileo
WIFI 802.11a/b/g/n/ac/ax Wireless Internet; Wireless AP (Mobile AP); 2.4G, 5G
Support WIFI 6
BLUETOOTH 5.2 Version
NFC 13.56 MHz, Distance: 1-3cm; ISO/IEC 14443A/B; ISO/IEC 15693
MIC Sensitivity: -32±2d; Output Impedance: 2.2kΩx1
SPEAKER 8Ω 0.8 Watt *2
Sensor Light sensor, Magnetic sensor, Pressure sensor, G-sensor, Distance sensor, Acceleration sensor, Gyroscope, Motor
Size 331.7×203.2×19.5mm
Weight 1450 ± 50g
Language Multi language
Interface In/Out Port DC power interface (∮3.5mm); USB-A (USB 2.0 *1); Type-c*1; Anti-theft lock hole; Aviation interface x2 (customized & RS232, RS232 only TX RX GND); Card slot (SIM+TF); Headphone Jack (∮3.5mm); Ethernet RJ45 (10/100M)
Bottom pogopin: USB 2.0; Charging; RS232
Button V+ -, Power, "F" for Barcode Scan
Customized Button: P, H (Default No Functionality)
1D/2D Barcode Optional: Honeywell N4680 Optional
Accessories Blue Box; DC Charger (5V 3A); Carry strap; Wrist strap; Screw & Screwdriver
Multi-Media (Hardware Decoding) Photo Viewer: BMP, JPG, GIF, PNG
Video Format: MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (UP TO 1080P)
Audio Format: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (need license)
Proof Degree IP65 Anti-dust & Waterproof, 1.2m Dropping Resistance
Certification CE, FCC, 3C
Temperature Storage Temperature: -40°C to 60°C; Operation Temperature: -20°C to 55°C

Application Scenarios

📡
5G Industrial Applications
🤖
Android IoT Systems
🔋
Long-Endurance Field Operations
📊
5G Data Visualization Tasks
