Product Introduction


1.8 inch IPS:HD 800*1280 Screen rugged tablet

2.Android 6.0 OS rugged tablet

3.RAM 3GB ROM 32GB  rugged tablet

4.2G/3G/4GLTE/WIFI rugged tablet

5.Ultra-thin Industrial Tablet PC


2、Main sA4:F26
Platform Octo core
MT6753   A53 Octo core  1.3GH
GPU:   mali -t720
OS Android 6.0
Dimension 226.4*142*13.5mm
3Hardware Specs
TYPE Description Remarks
Communication(5 MODEL 17 BAND AT MOST) 2G internet format GSM  B2/B3/B5/B8 optional
CDMA BCO/BC1/BC6/BC10/BC14  optional
3G internet format TD-CDMA B34/B39  optional
WCDMA B1/B2/B4/B5/B8
CDMA20001x/EVDO BCO/BC14  optional
4G internet format TDD-LTE B38/B39/B40/B41;optional
FDD-LTE B1/B2/B3/B4/B5/B7/B8/B20(B12/B17/B28A/B28B);optional  (B1 and B4,ADVISE alternative)
LCD+TP LCD 8inches IPS:HD 800*1280 support FHD 1920*1200     (The whole perspective, visible under the strong light)
Storage DDR3 3GB
Extended card Support Micro SD card、up to 128GB maximum
Camera Front camera 2.0M   FPC with shielding film 5.0M/8.0Moptional
Rear camera 8.0M   FPC with shielding film 13.0M AF/16.0M AF
Flash TRUE FLASH can come ture ,it's up to construction to make it on the FPC
Data transmission USB 2.0 support 2.0
BT+EDR 4.1
WiFi 802.11 a/b/g/n 2.4G+5G double band WIFI,support WEP\WPA\WPA2-PSK\WAPI PSK\802.1x EAP encryption protocol
BDS support  BDS
FM Standard Internal Antenna
Multimedia Video support  MP4、3GP、AVI etc.
Photos Support JPG,  BMP, PNG etc.
Interface Earphone X1 3.5mm
MicroUSB X1 OTG optional    should support USD2.0 high speed transmit standard;transmit rate no less than 10Mbit/s;should Has communication function;has esd protection circuit and external attack protection circuit
TF card X1 Support Micro SD card、up to 128GB maximum
485 port support material to be advised
Security (Optional) encryption TF card X1 support to up TF,compatible State grid security access platform security encryption TF card ,can collect and terminal equipment to encrypt data interaction, achieve security authentication, data collection, and so on the size and pin meet Q/GDW 11117-2013 standard
hardware encryption reserved or compatible
Power infrared/infrared measuring temperature (Optional) module Compatible with external potential contect meet infrared requirements of DL/T645-1997、DL/T645-2007 standard
Barcode (Optional) module 1D/2D barcode both compat
module NFC/RFID both compat
MIC MIC 6021 specified material
Receiver Receiver 1507 H=2.8 dome specified material
Speaker Speaker 8Ω/2W Speaker*1 specified material(2030)
keyboard module virtual QWERTY keyboard and Digital entity keyboard support external keyboard(OTG USB,UART)

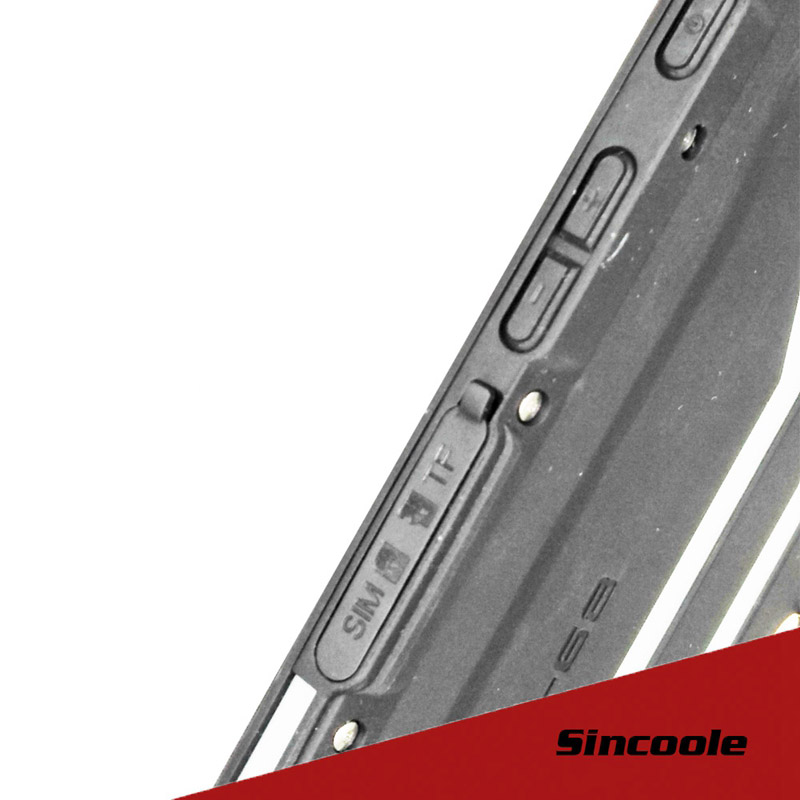

side key module pow off key,volume key,camera key,scan key ,SOC key,reset key
language  built-in language multiple languages
OS module Android 5.1/Android 6.0//Android 7.0
others flashlight standard
G-Sensor standard
L-senso standard
G-Sensor standard
Indicator standard(green,red,blue led vibrator,speaker)
gyroscope support
environment temperature and humidity support,require -40℃ to +80℃ require -40℃ to +80℃;humidity collection 0-99%
Compass support
Battery 4.2V 8500mAH common battery(specific material) support fast charge 2.0 optional
remark: 1 main antenna,Classification antenna,WIFI/BT antenna,GPS antenna
2 Magnetic charging and data transmission
Fall according to pass Exib  11C T5 Gb 1 meter
hazardous rating: IP68   GB4208
Three level prevention: 3C
certification: CE/ROS
